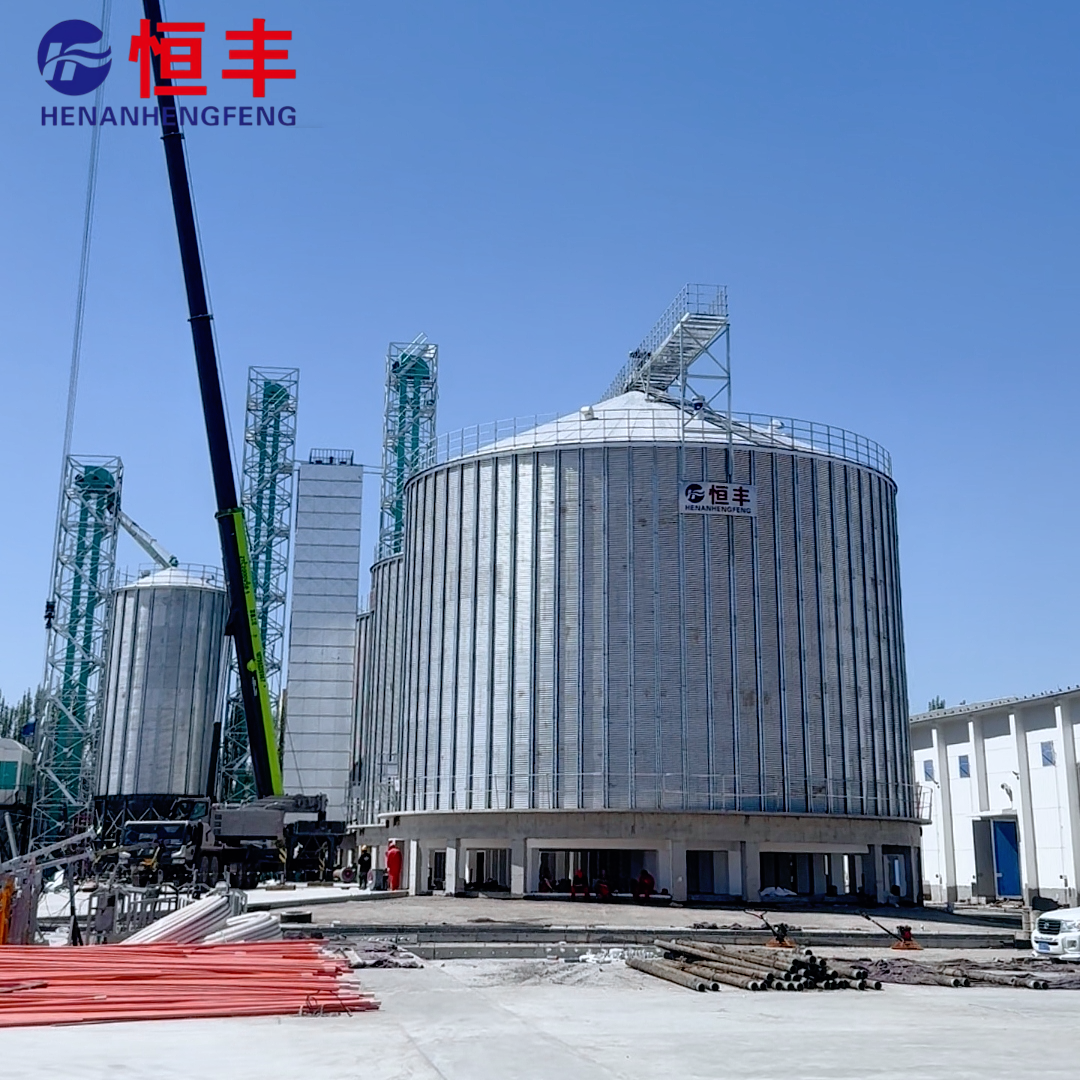

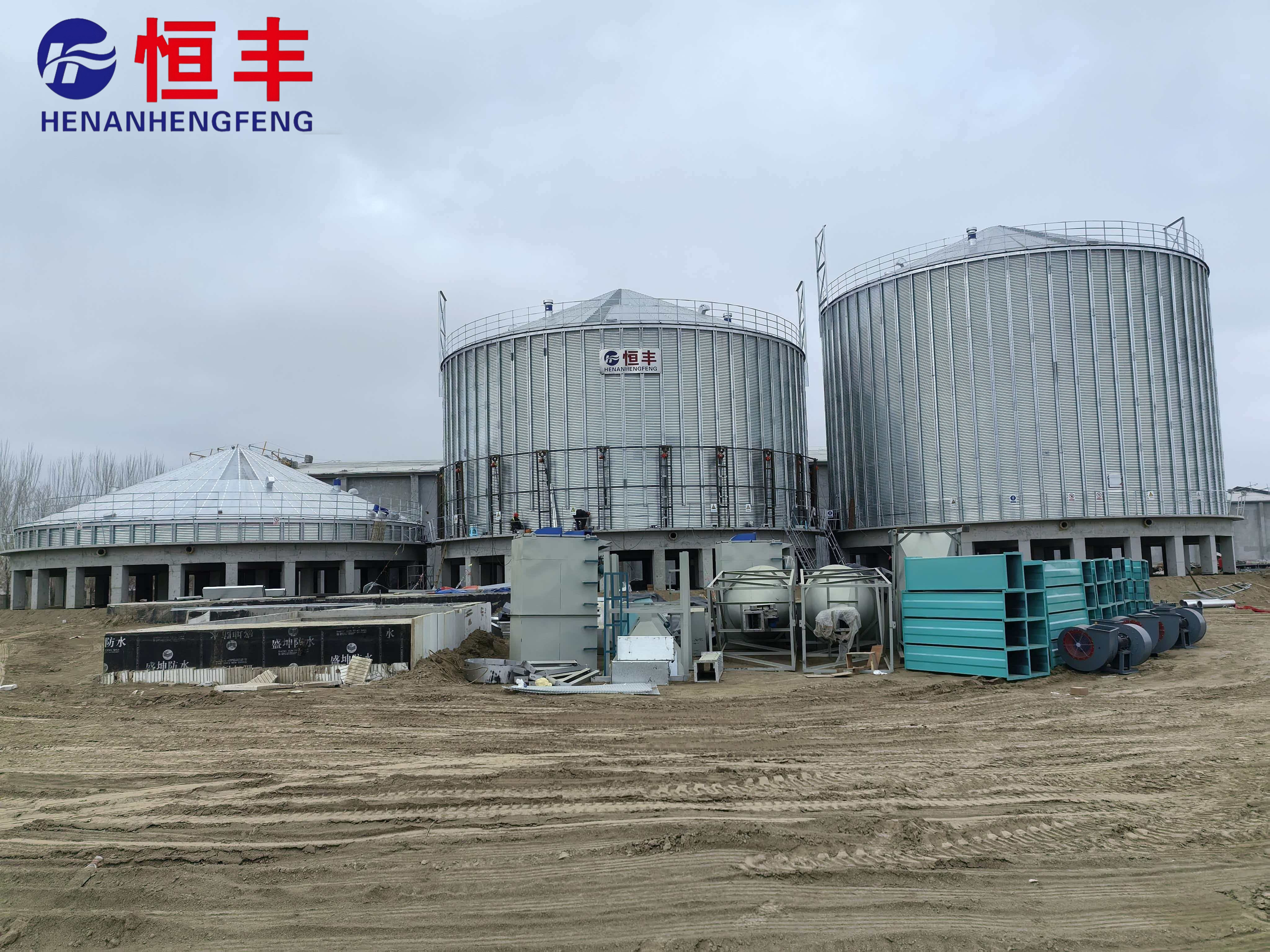

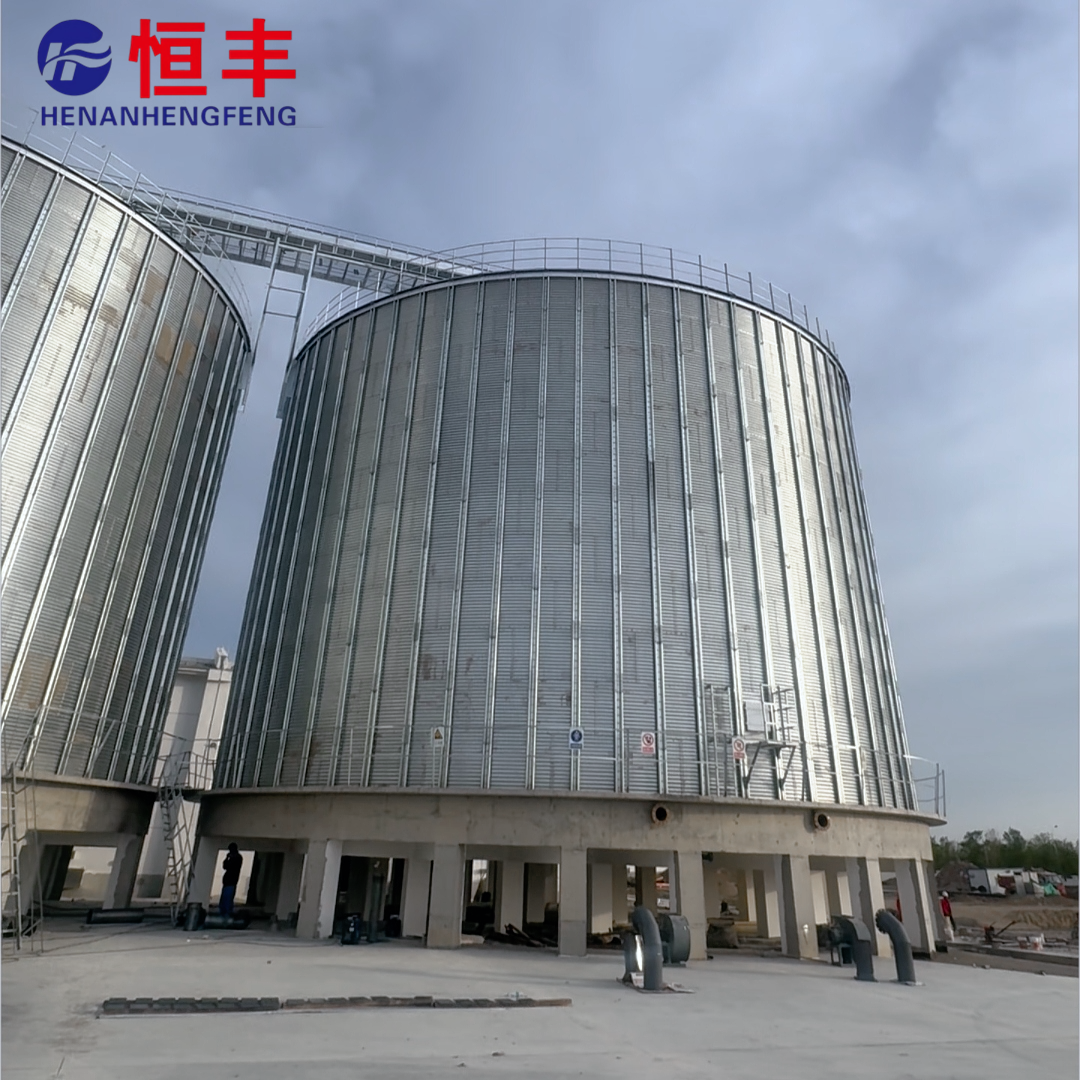

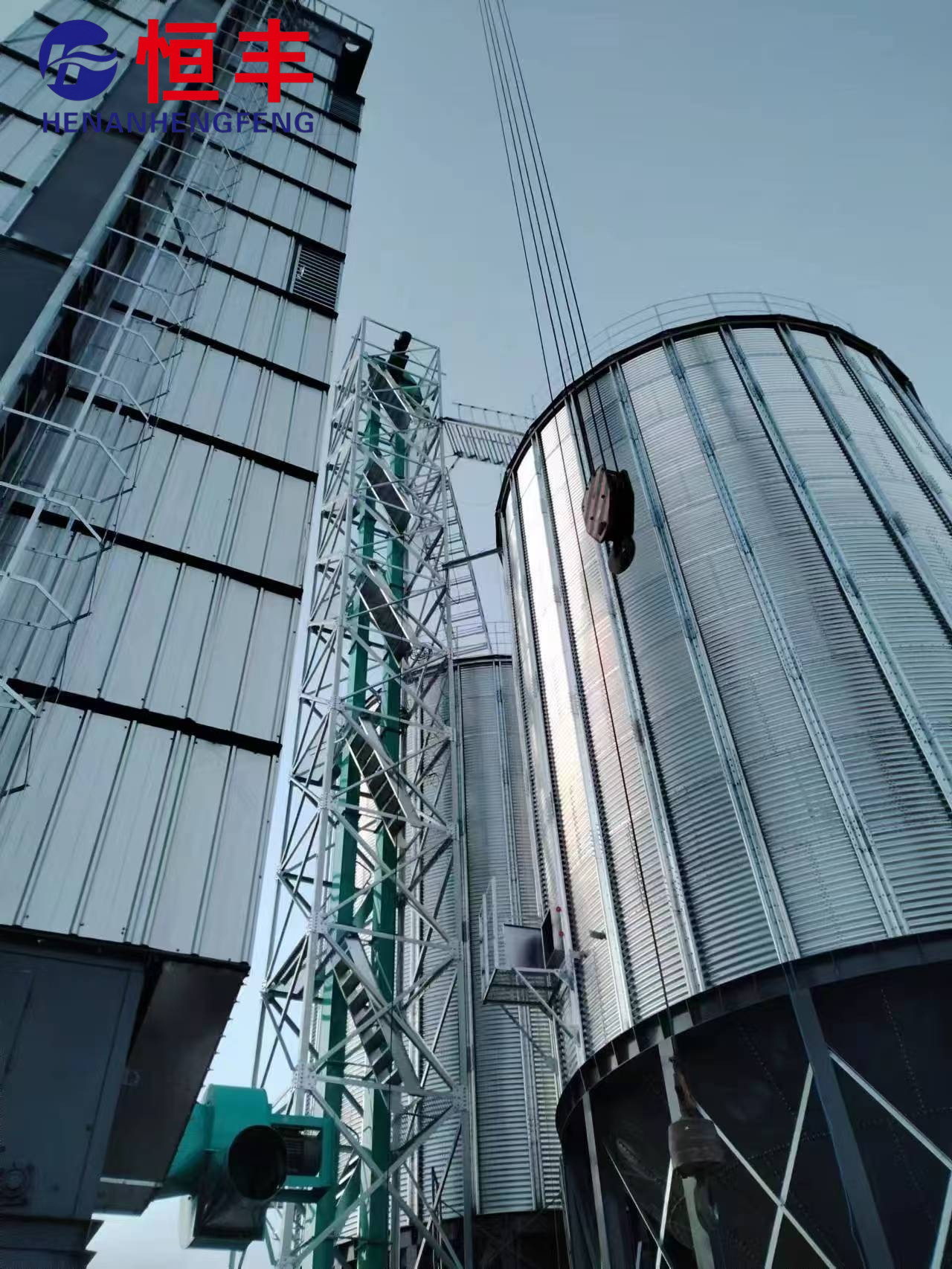

Versatile Stainless 2000t Flat Bottom Steel Grain Silo Bin for Wheat

1

Basic parameters of the warehouse body

The top angle of the warehouse is 30 °, the diameter of the warehouse is 20.1m, and the height of the warehouse body is 21.26m

2

Warehouse capacity index

The top angle of the warehouse is 30 °, the diameter of the warehouse is 13.75m, the height of the warehouse barrel is 16.87m, and the total height of the warehouse body is 20.87m

3

Material and thickness of the board

1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC350 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate

2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with a zinc content of 275g/㎡ on both sides

3. Layered thickness: 2.0mm for the first layer, 1.5mm for the second to fourth layers, 2.0mm for the fifth to tenth layers, 2.5mm for the eleventh to fourteenth layers, and 3.0mm for the fifteenth layer

4

M-type column parameters

External M-type galvanized column with a width of approximately 312mm; 15 layers of enclosure panels, with 15 panels installed on each layer

5

Ancillary facilities

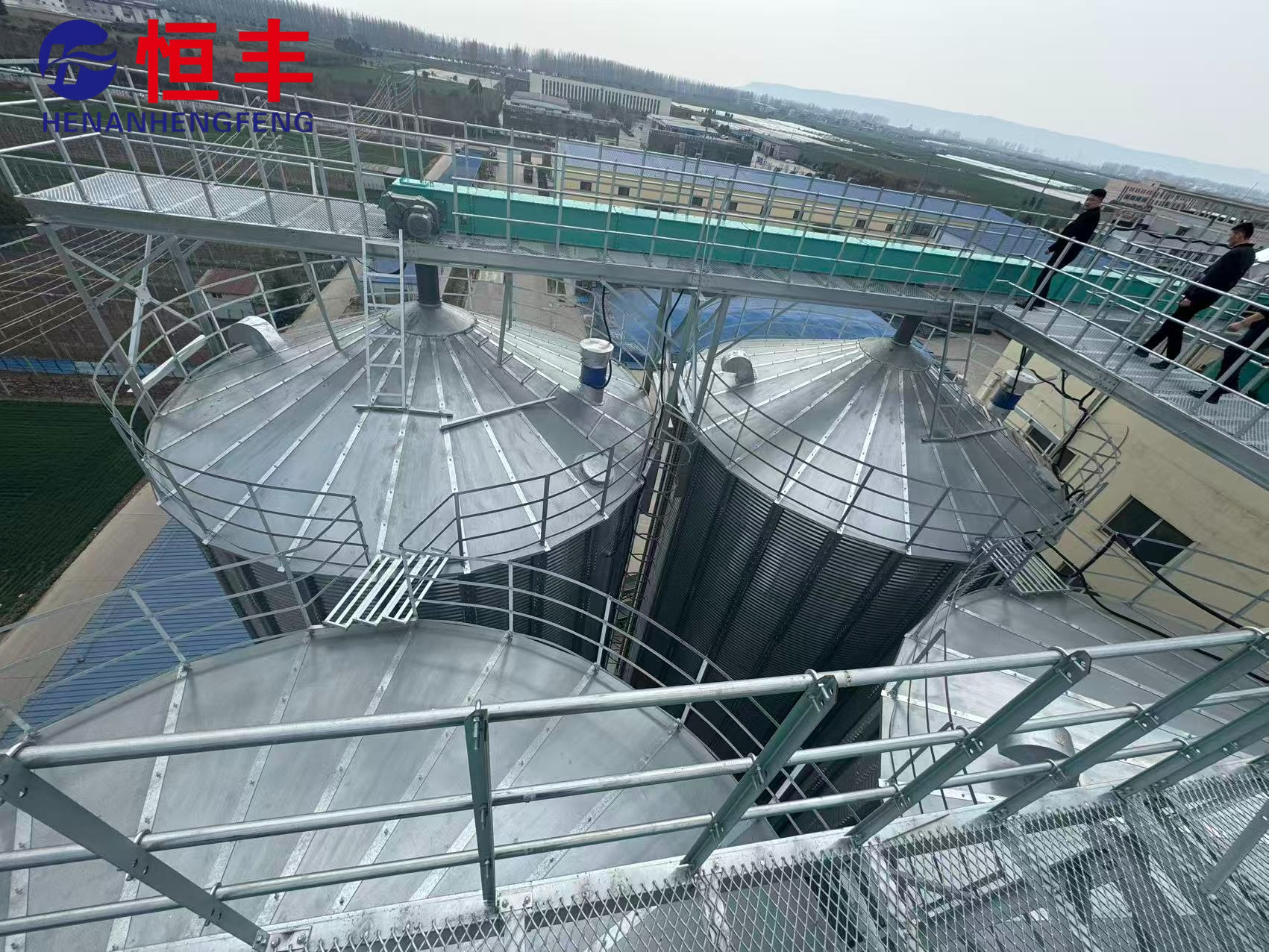

1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse

6

Production, installation, and standards

On site installation and construction, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision;

Bolt configuration: The warehouse roof and cylinder are equipped with 8.8 grade high-grade galvanized bolts (Shanghai Hardiwei/Jinyi), and key load-bearing parts are equipped with 10.9 grade high-strength galvanized bolts (Shanghai Hardiwei/Jinyi) components, matched with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets (Fujian Yongda), and the bolts are wrapped with Shanghai Kejian aviation sealing strips;

Sealing treatment: The joint of the enclosure board is sealed with Shanghai Kejian Aviation Sealing Cement, which is corrosion-resistant, highly viscous, and has excellent sealing performance (different from conventional bolts, gaskets, and rubber strips);

Service life: 30 years
