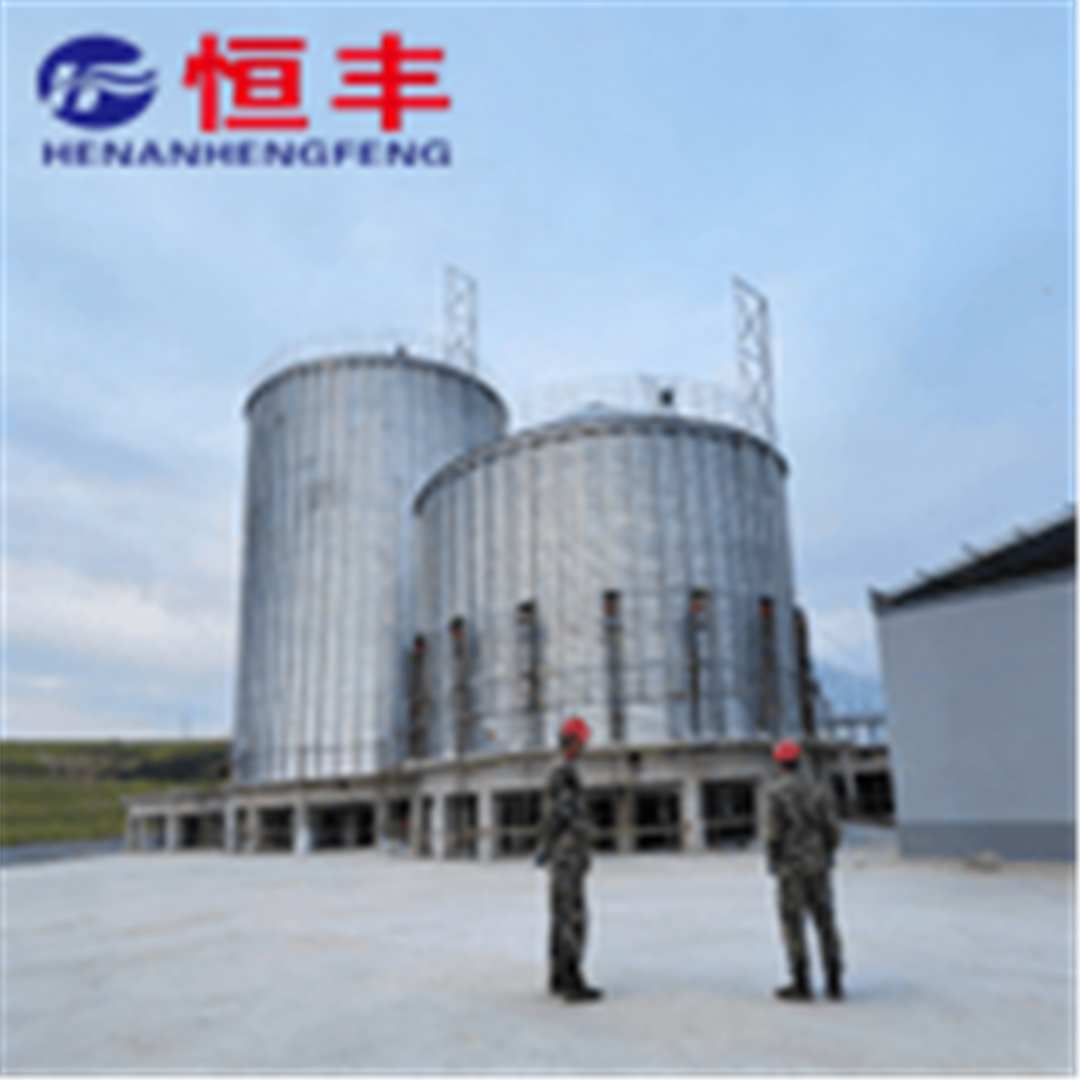

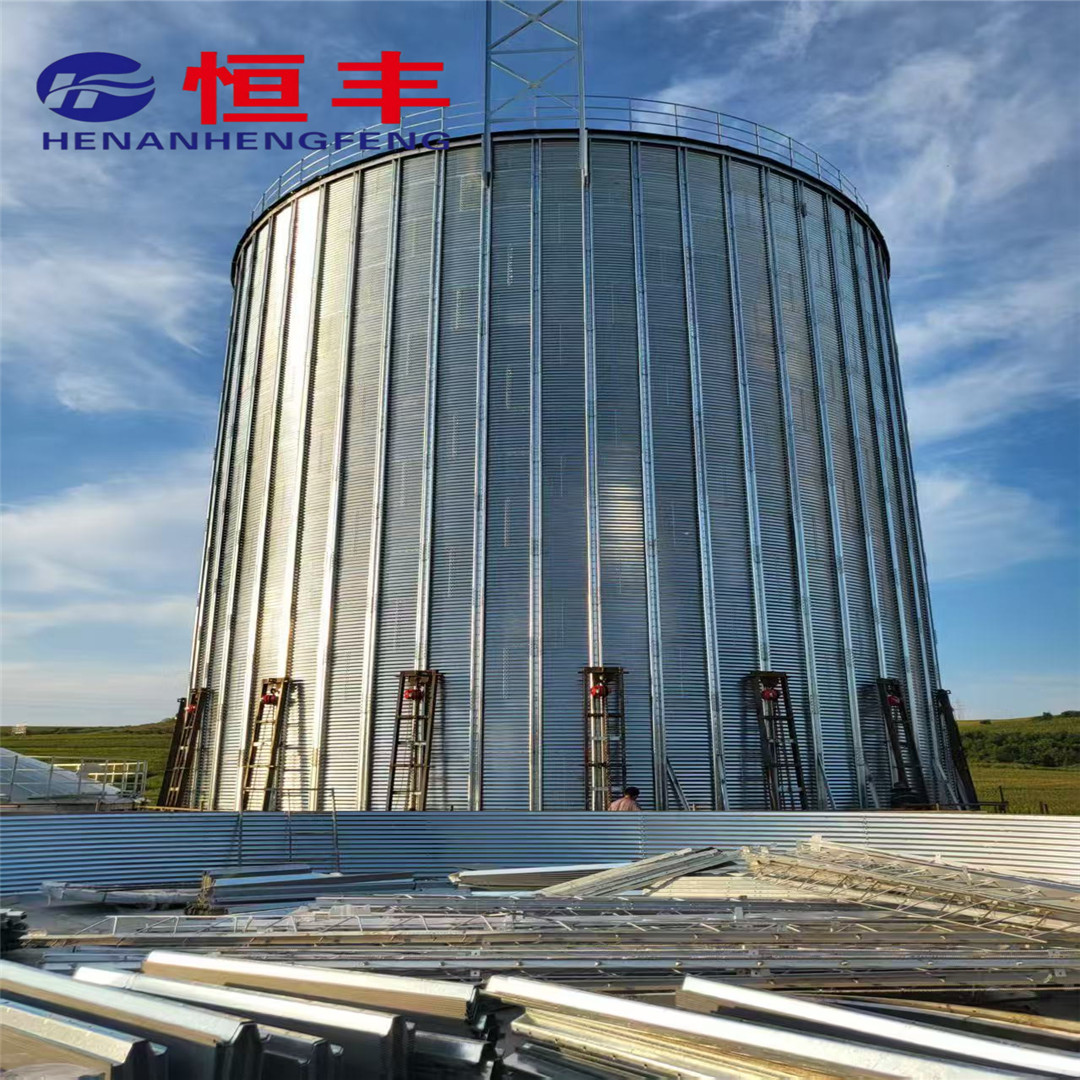

The 2000 Ton Flat Bottomed Steel Silo

The 2000T flat bottomed steel silo is a heavy-duty storage equipment specially designed for static storage of oversized bulk materials, focusing on long-term closed storage of grain, feed raw materials, and industrial powders. The flat bottomed structure of the warehouse has a high utilization rate of storage capacity, balanced and stable load-bearing capacity, and is made of high zinc layer anti-corrosion board. It has excellent sealing and moisture-proof performance, convenient modular assembly, and is suitable for large-scale, long-term static storage scenarios such as grain depots and industrial parks. It has low operation and maintenance costs and strong durability.

Quantity:
Availability:





Inquire

The 2000 Ton Flat Bottomed Steel silo grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat food grade silo

Product Advantage

1. Balanced load-bearing+stable structural design: The bottom of the warehouse is reinforced with a solid cement floor and steel beams for load-bearing, with uniform force distribution and no local deformation. The warehouse body is reinforced with external thickened galvanized columns, and the structure is stable under a full load condition of 2000T, suitable for heavy-duty storage of various bulk materials.

2. Double sealed moisture-proof and fresh-keeping system: Adopting a double sealing process of sealing adhesive and rubber gasket, the joint seam of the warehouse body has zero leakage, effectively blocking moisture, dust, and pests. Combined with ventilation reserved openings, it ensures the quality of long-term stored materials and complies with grain storage regulations.

Technical Parameters

Serial Number	Item	Parameter Details
1	Basic parameters of the warehouse body	The top angle of the warehouse is 30 °, the diameter of the warehouse is 20.1m, and the height of the warehouse body is 21.26m
2	Warehouse capacity index	The top angle of the warehouse is 30 °, the diameter of the warehouse is 13.75m, the height of the warehouse barrel is 16.87m, and the total height of the warehouse body is 20.87m
3	Material and thickness of the board	1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC350 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate 2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with a zinc content of 275g/㎡ on both sides 3. Layered thickness: 2.0mm for the first layer, 1.5mm for the second to fourth layers, 2.0mm for the fifth to tenth layers, 2.5mm for the eleventh to fourteenth layers, and 3.0mm for the fifteenth layer
4	M-type column parameters	External M-type galvanized column with a width of approximately 312mm; 15 layers of enclosure panels, with 15 panels installed on each layer
5	Ancillary facilities	1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse
6	Production, installation, and standards	On site installation and construction, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: The warehouse roof and cylinder are equipped with 8.8 grade high-grade galvanized bolts (Shanghai Hardiwei/Jinyi), and key load-bearing parts are equipped with 10.9 grade high-strength galvanized bolts (Shanghai Hardiwei/Jinyi) components, matched with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets (Fujian Yongda), and the bolts are wrapped with Shanghai Kejian aviation sealing strips; Sealing treatment: The joint of the enclosure board is sealed with Shanghai Kejian Aviation Sealing Cement, which is corrosion-resistant, highly viscous, and has excellent sealing performance (different from conventional bolts, gaskets, and rubber strips); Service life: 30 years

Product Uses

1. National Strategic Reserve Grain Depot: Suitable for long-term static storage of wheat, corn, and rice in national and provincial reserve grain depots, with a super large capacity of 2000T that meets strategic storage needs. The flat bottomed structure of the warehouse has a high utilization rate, and the sealed and moisture-proof design strictly controls grain mold and loss. It is also suitable for cross season and even cross year storage.

2. Large grain and oil processing base: serving the bulk storage of raw materials for large and medium-sized flour, oil, and rice processing plants. The flat bottomed warehouse has balanced load-bearing capacity and large storage capacity, which can reduce the frequency of raw material turnover. The sealed system ensures the quality of raw materials and is suitable for long-term stocking and stable production needs of enterprises.
