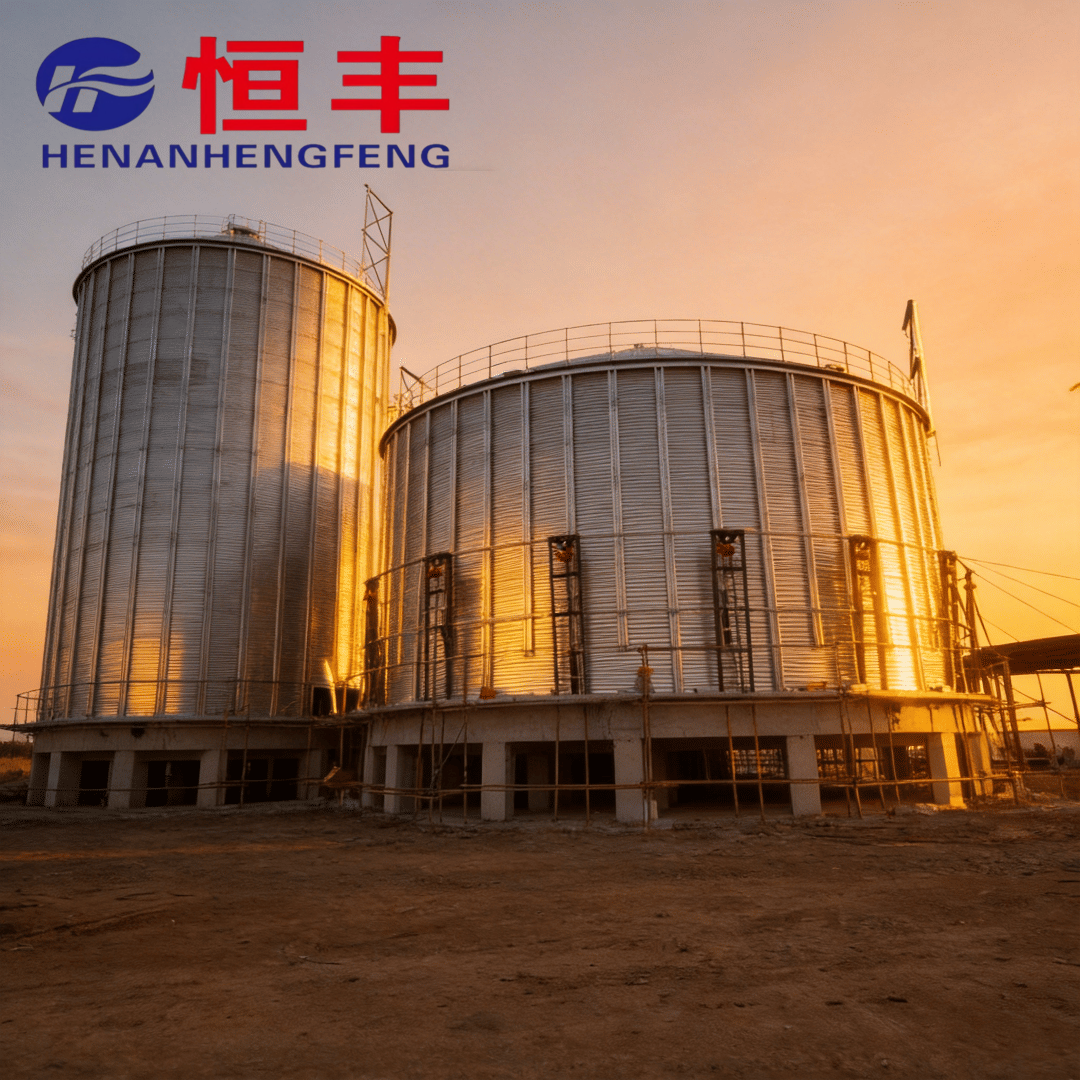

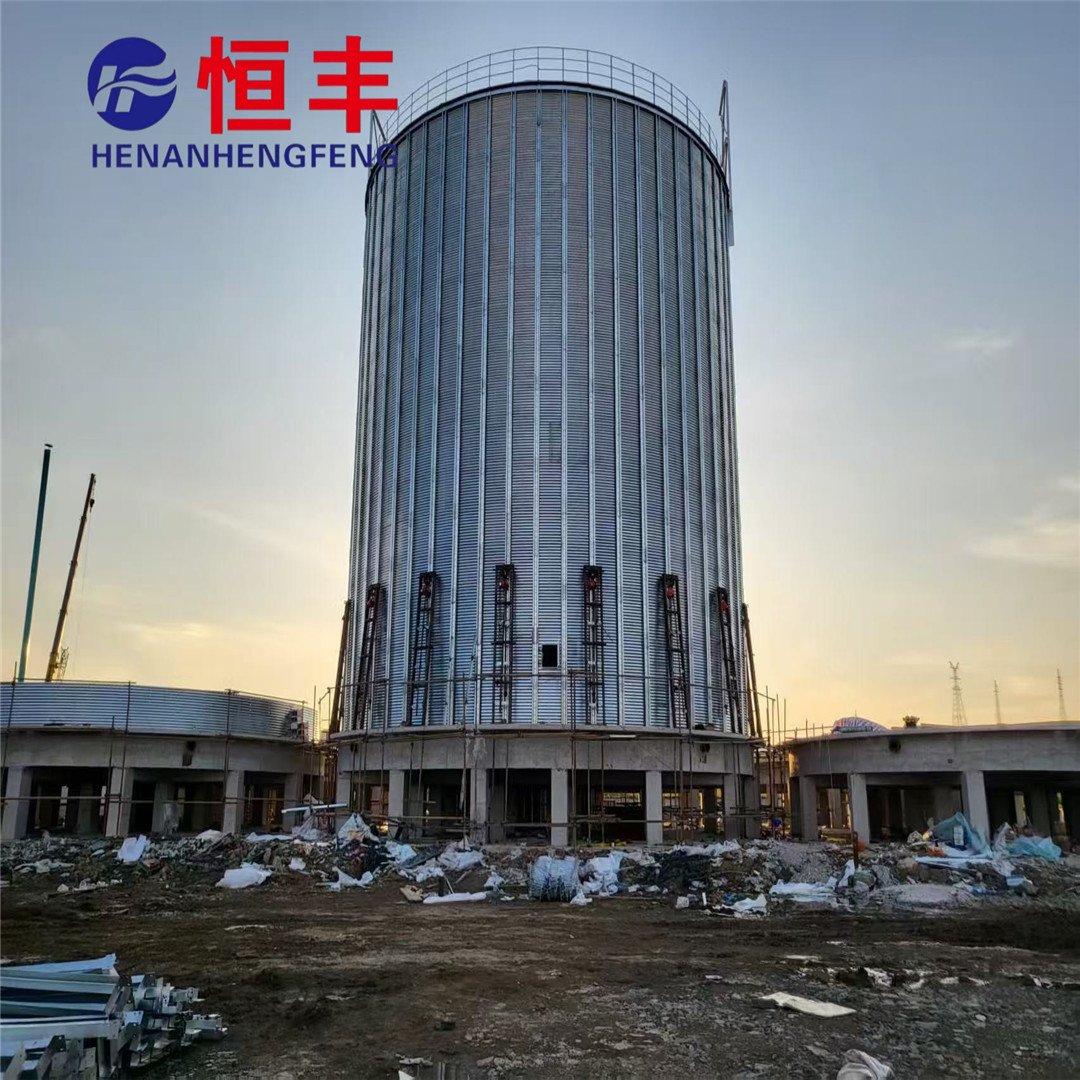

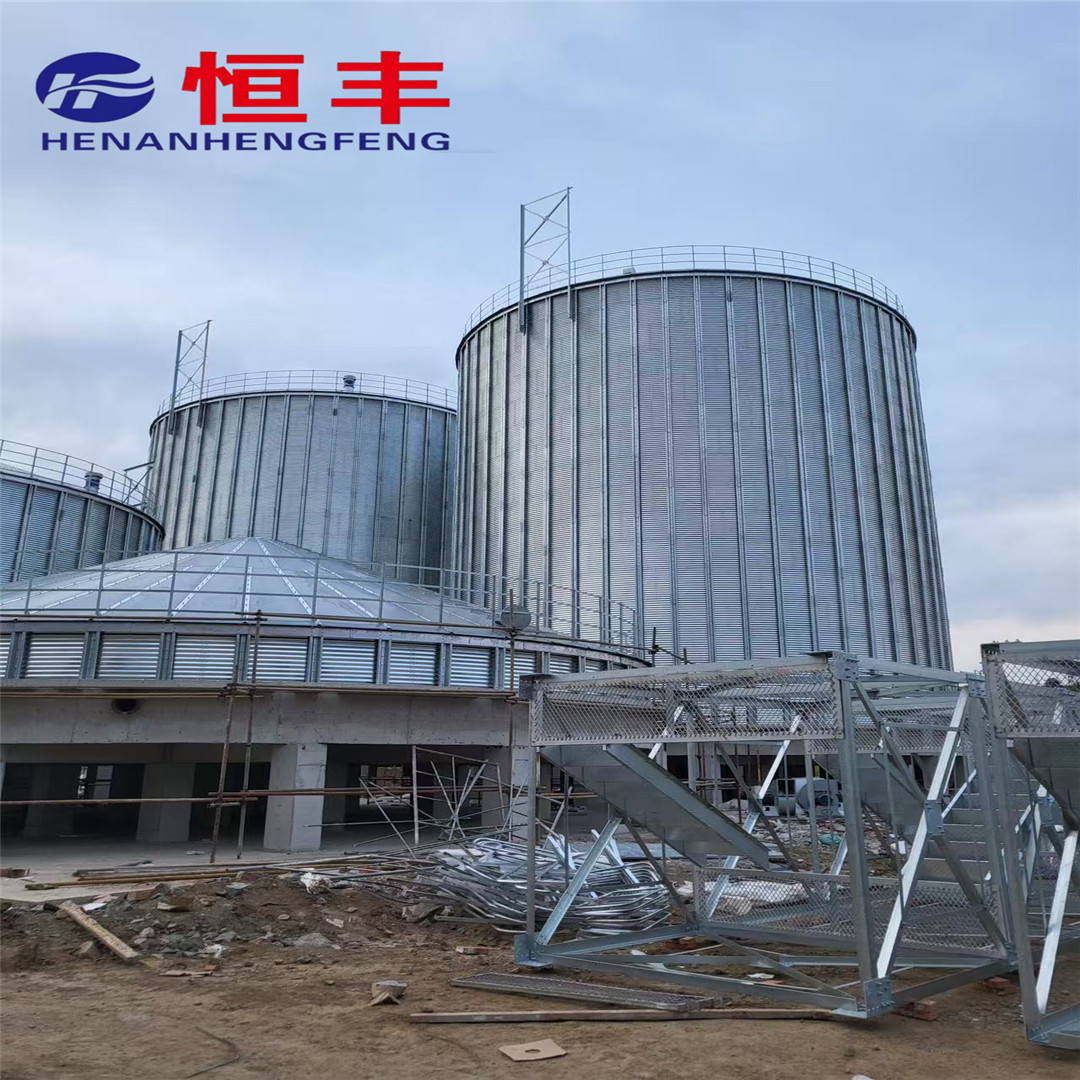

The 5000 Ton Flat Bottomed Steel silo

The 5000T flat bottomed steel silo is a heavy-duty static storage equipment for giant bulk materials, specializing in long-term sealed storage of large quantities of grain, feed raw materials, and industrial powders. The flat bottomed structure of the warehouse has a high utilization rate of storage capacity, balanced and stable load-bearing capacity, and is made of thickened high zinc layer anti-corrosion steel plates. It has excellent sealing and moisture-proof performance, convenient modular assembly, and is suitable for large-scale grain depots, industrial parks and other large-scale, long-term storage scenarios. It has strong durability and low operation and maintenance costs.
Core keywords: 5000T flat bottomed steel plate silo, large.

Quantity:
Availability:





Inquire

The 5000 Ton Flat Bottomed Steel silo grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat food grade silo

Product Advantage

1. Heavy load balanced load-bearing+stable structure: The bottom of the warehouse is reinforced with a cement floor and thickened steel beams, which are uniformly stressed without local deformation. The external widened and thickened galvanized columns strengthen the warehouse body, and the structure is stable under 5000T full load conditions. It is suitable for static storage of various bulk materials under heavy load, and has a high safety factor.

2. Double sealed moisture-proof and fresh-keeping system: Adopting the dual sealing process of aviation sealing adhesive and high elasticity rubber gasket, the joint seam of the warehouse body has zero leakage, effectively blocking moisture, dust, and pests, reserving intelligent ventilation openings, strictly controlling the environment inside the warehouse, and ensuring the quality of long-term stored materials.

Technical Parameters

Serial Number	Item	Parameter Details
1	Basic parameters of the warehouse body	The top angle of the warehouse is 25 °, the diameter of the warehouse is 20.1m, and the height of the warehouse body is 25.74m
2	Warehouse capacity index	The warehouse has a capacity of 7082 square meters and a weight of 5311 tons
3	Material and thickness of the board	1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC350 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate 2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with zinc aluminum magnesium content on both sides of 275g/㎡ 3. Layer thickness: 3.0mm for layers 1-2, 2.0mm for layers 3-6, 2.5mm for layers 7-8, 3.0mm for layers 9-11, 3.5mm for layers 12-14, 4.0mm for layers 15-17, and 5.0mm for layer 18 (double-layer)
4	M-type column parameters	Layered thickness: Section 1-2 3.0mm, Section 3-4 4.0mm, Section 5-6 5.0mm, Section 7-8 6.0mm, Section 9 7.0mm
5	Ancillary facilities	1 set of matching warehouse drum and 1 set of matching straight climbing ladder inside the warehouse
6	Production, installation, and standards	On site installation and construction, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: Use 8.8 grade high-strength galvanized bolt components, use 8.8 grade high-strength galvanized bolts (Shanghai Hardiwei/Jinyi) for the top and cylinder of the warehouse, use 10.9 grade high-strength galvanized bolt components (Shanghai Hardiwei/Jinyi) for key load-bearing parts, and match with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets (Fujian Yongda). The bolts are wrapped with Shanghai Kejian aviation sealing strips; Sealing treatment: The joint of the enclosure board is sealed with Shanghai Kejian Aviation Sealing Cement, which is corrosion-resistant, highly viscous, and has excellent sealing performance (different from conventional bolts, gaskets, and rubber strips); Service life: 30 years

Product Uses

1. Large scale feed group strategic reserve warehouse: As a core raw material reserve warehouse for top feed enterprises such as soybean meal and corn, the huge capacity reduces replenishment costs, and the high anti-corrosion board is resistant to raw material corrosion, suitable for long-term static storage and stable production line supply.

2. Industrial giant powder storage: Suitable for long-term storage of materials such as cement, mineral powder, plastic particles, etc. in the building materials and chemical industries. The warehouse has strong load-bearing capacity, sealed to prevent dust leakage, and a flat bottom structure suitable for static storage, meeting the needs of enterprises for large-scale bulk stocking.
