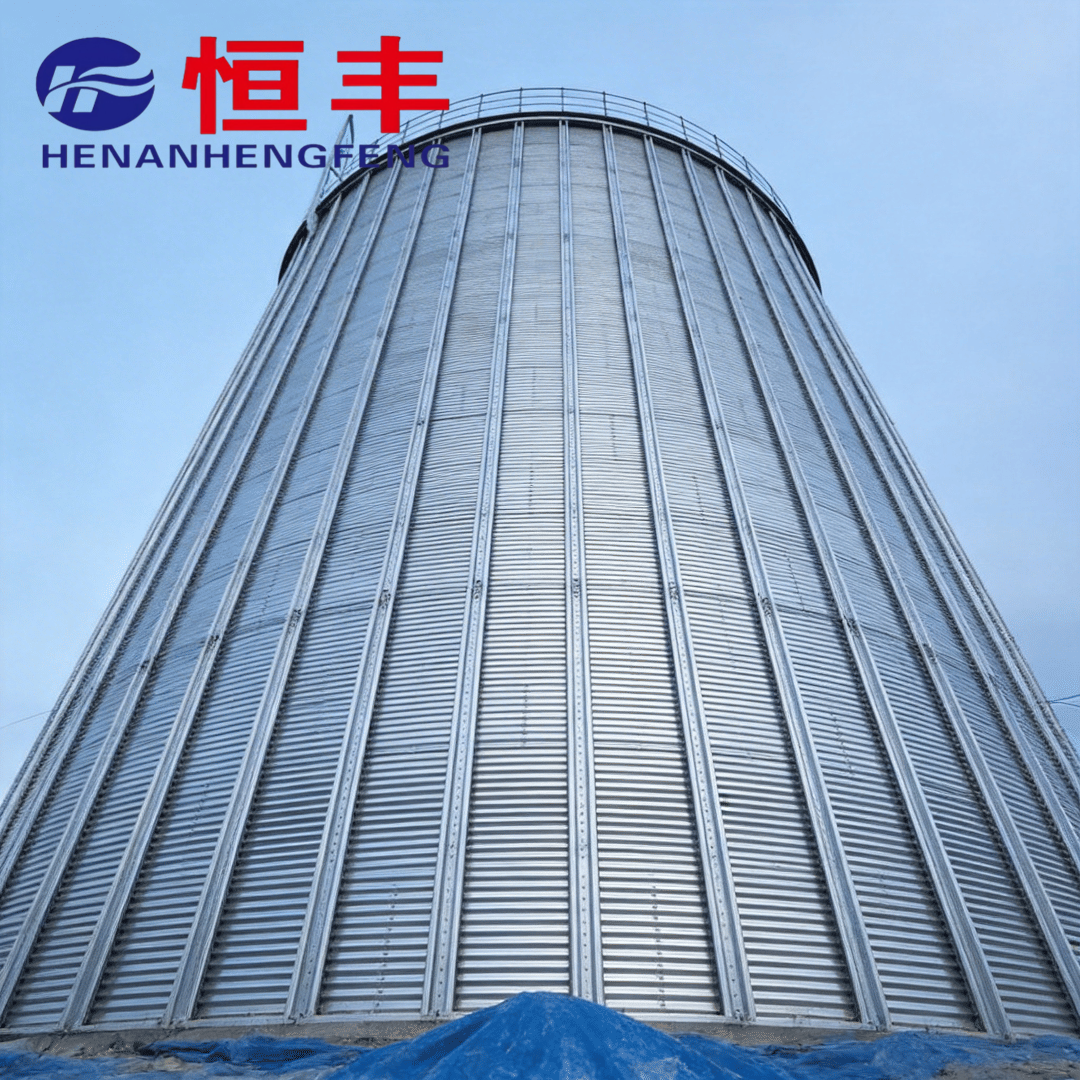

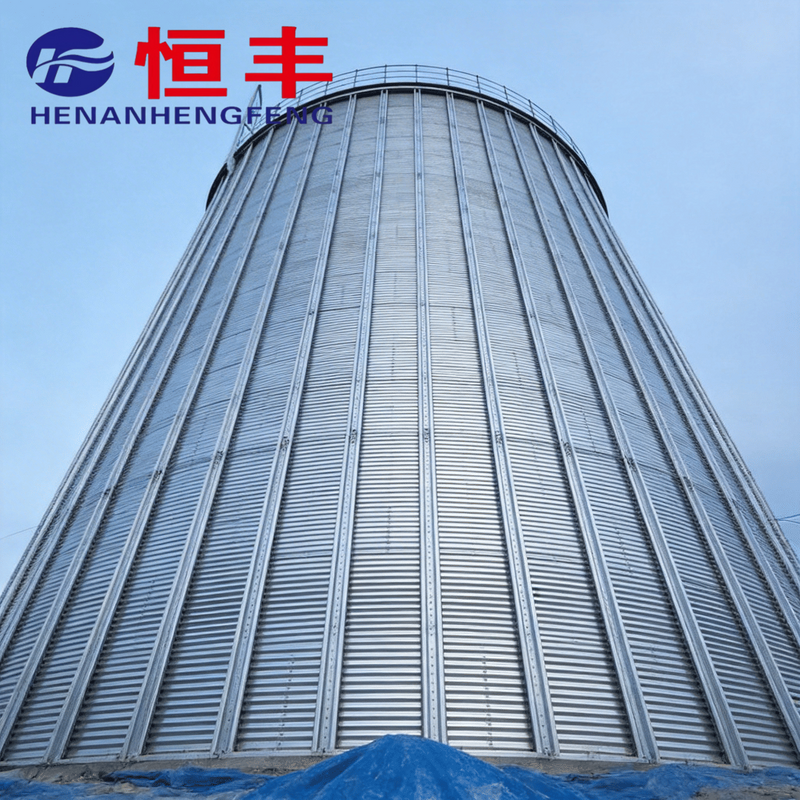

The 4000 Ton Flat Bottomed Steel Silo

Product details of 4000T flat bottomed steel plate silo.
The 4000T flat bottomed steel plate warehouse is a heavy-duty static storage equipment for ultra large bulk materials, specializing in long-term closed storage of grain, feed raw materials, and industrial powders. The flat bottomed structure of the warehouse has a high utilization rate of storage capacity, balanced and strong load-bearing capacity, and is made of thickened high zinc layer anti-corrosion board. It has outstanding sealing and moisture-proof performance, convenient modular assembly, and is suitable for large-scale grain depots, industrial parks, and long-term storage scenarios. It has strong durability and low full cycle operation and maintenance costs.

Quantity:
Availability:





Inquire

The 4000 Ton Flat Bottomed Steel silo grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat food grade silo

Product Advantage

1. Double sealed moisture-proof and fresh-keeping system: Adopting the dual sealing process of aviation sealing adhesive and high elasticity rubber gasket, the joint seam of the warehouse body has zero leakage, effectively blocking moisture, dust, and pests, reserving intelligent ventilation openings, strictly controlling the environment inside the warehouse, and ensuring the quality of long-term stored materials.

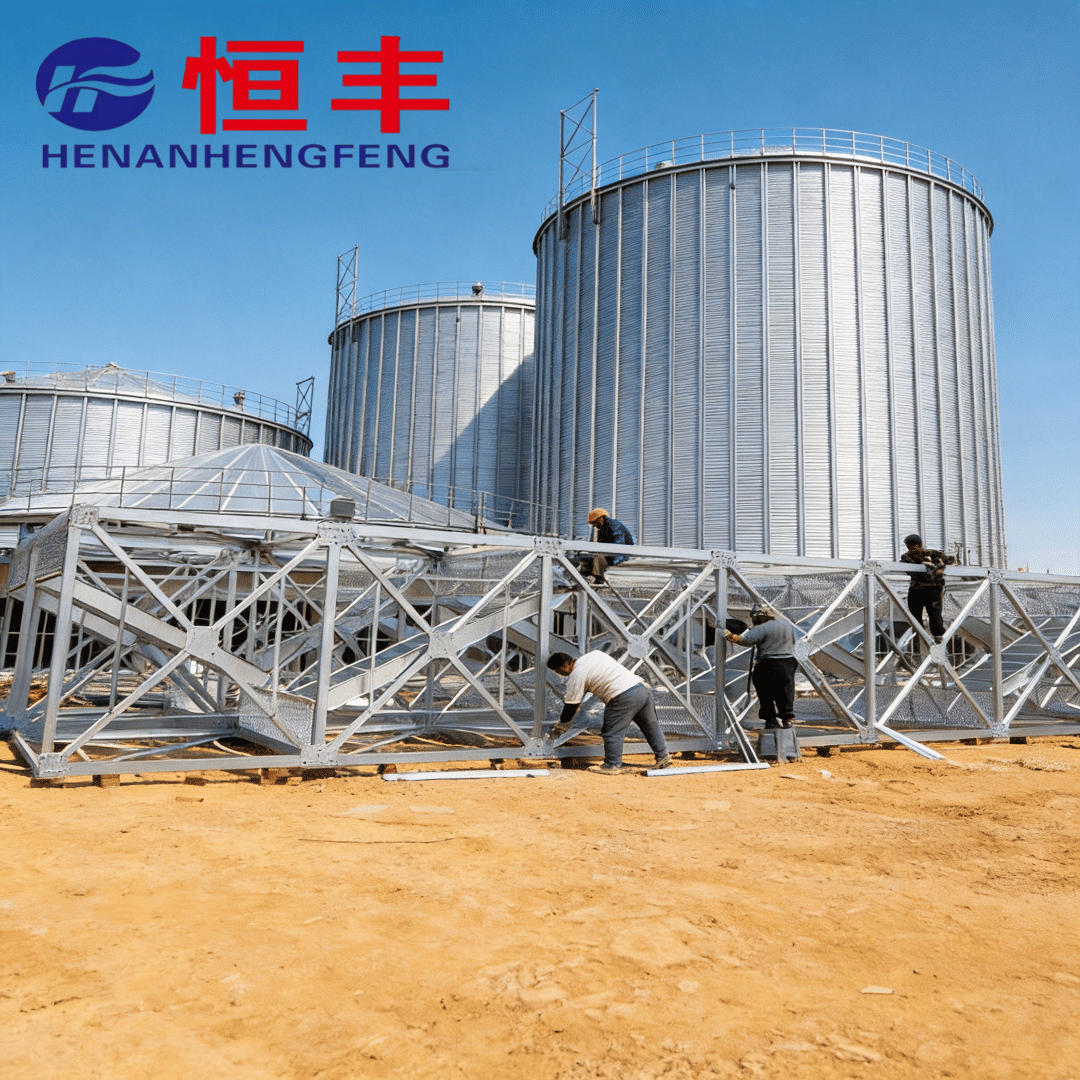

2. Modular precision assembly+easy expansion: The corrugated board of the warehouse body is customized and processed by an automated production line, with high dimensional accuracy and fast on-site modular splicing construction. Multiple warehouses can be connected in parallel to form large storage clusters, which can flexibly adapt to the large-scale layout of large grain depots and industrial parks.

Technical Parameters

Serial Number	Item	Parameter Details
1	Basic parameters of the warehouse body	The top angle of the warehouse is 30 °, the diameter of the warehouse is 20.1m, and the height of the warehouse body is 21.26m
2	Warehouse capacity index	The warehouse has a capacity of 5649 square meters and a weight of 4236 tons
3	Material and thickness of the board	1. Warehouse roof: 1.0mm thick aluminum zinc coated steel plate 2. Enclosure: DX51D+Z275 material, zinc layer content 275g/㎡ 3. Layer thickness: 3.0mm for layers 1-2, 2.0mm for layers 3-6, and 7-8 2.5mm， 3.0mm for floors 9-11, 3.5mm for floors 12-14
4	M-type column parameters	Layered thickness: 3.0mm for layers 1-4, 4.0mm for layers 5-8, 5.0mm for layers 9-12, and 6.0mm for layers 13-14
5	Ancillary facilities	1 set of matching warehouse drum and 1 set of matching straight climbing ladder inside the warehouse
6	Production, installation, and standards	On site installation and construction, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: Adopt 8.8-10.9 grade high-grade and high-strength galvanized bolt components, which are commonly used on the top and cylinder of the warehouse; Usage period: 30 years

Product Uses

1. Large scale grain and oil deep processing industrial park: serving large-scale flour, oil, and rice processing bases for bulk storage of raw materials, with balanced load-bearing capacity and large reserves, reducing the frequency of raw material turnover, sealing and preserving to ensure raw material quality, and meeting the long-term stocking and continuous production needs of enterprises.

2. Ultra large agricultural reclamation/planting base: Targeting tens of thousands of acres of agricultural reclamation bases and large-scale planting consortia for centralized grain storage, flat bottomed warehouses have high land utilization rates and stable structures, suitable for autumn harvest centralized warehousing, and achieve zoning control and simplified management of ultra large bulk materials.
