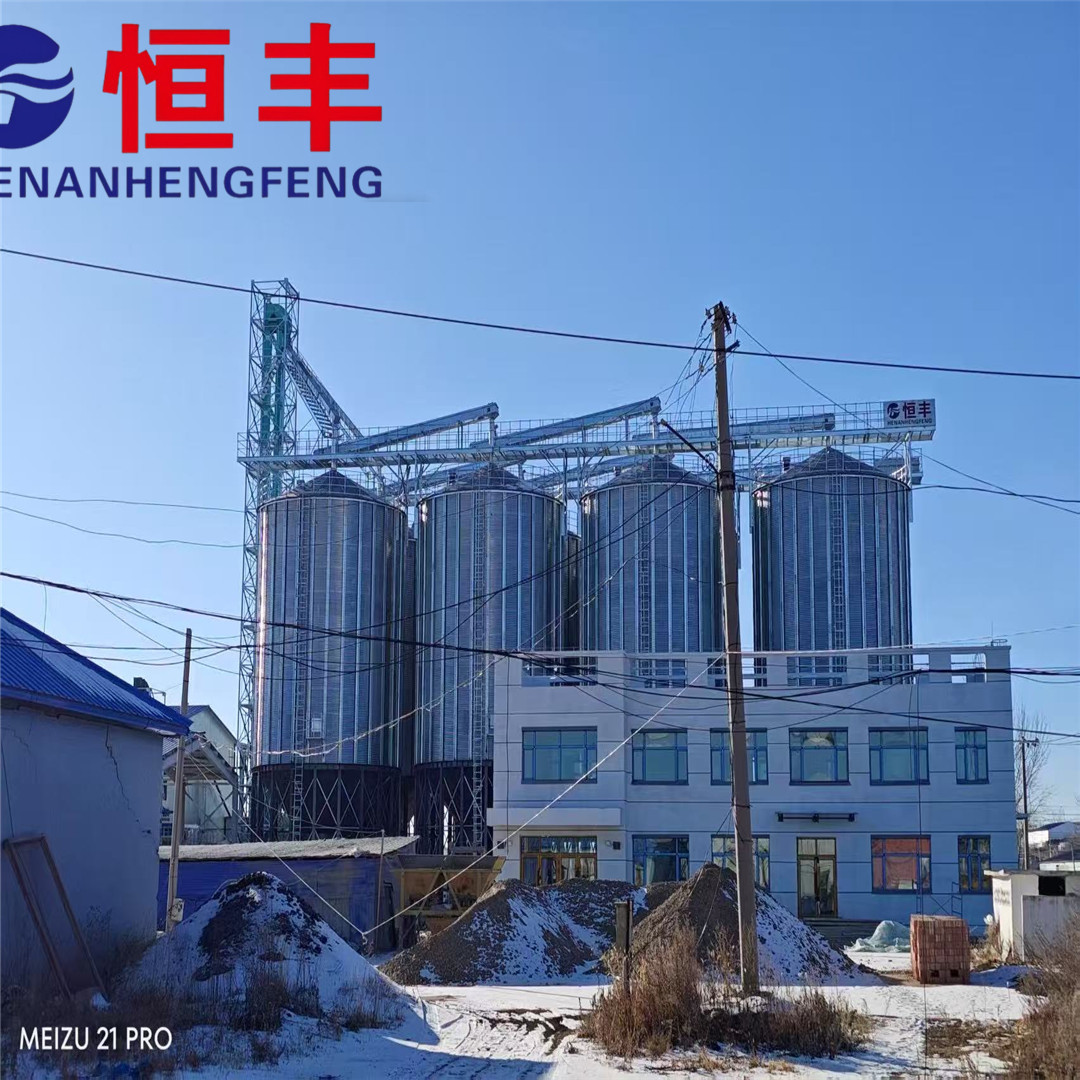

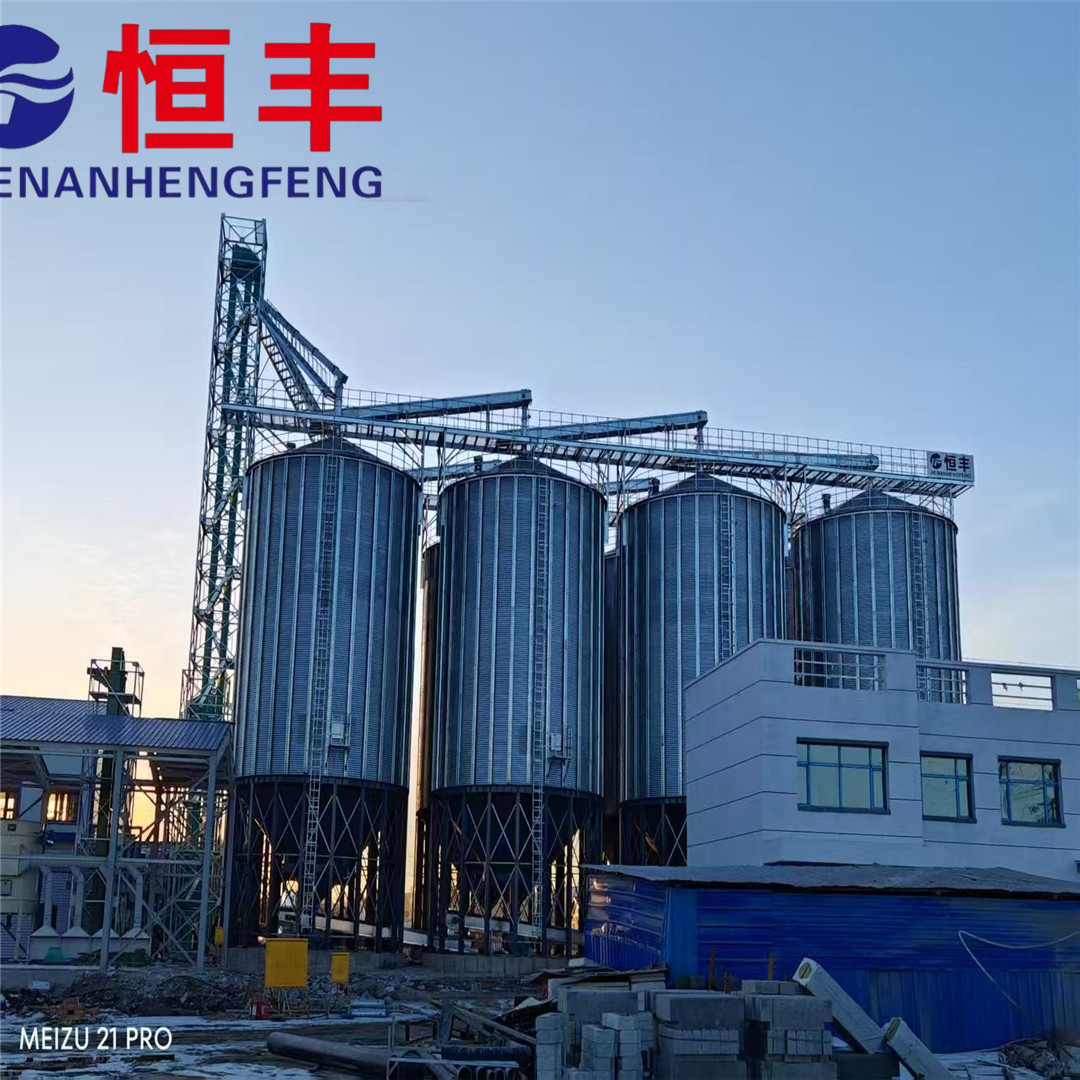

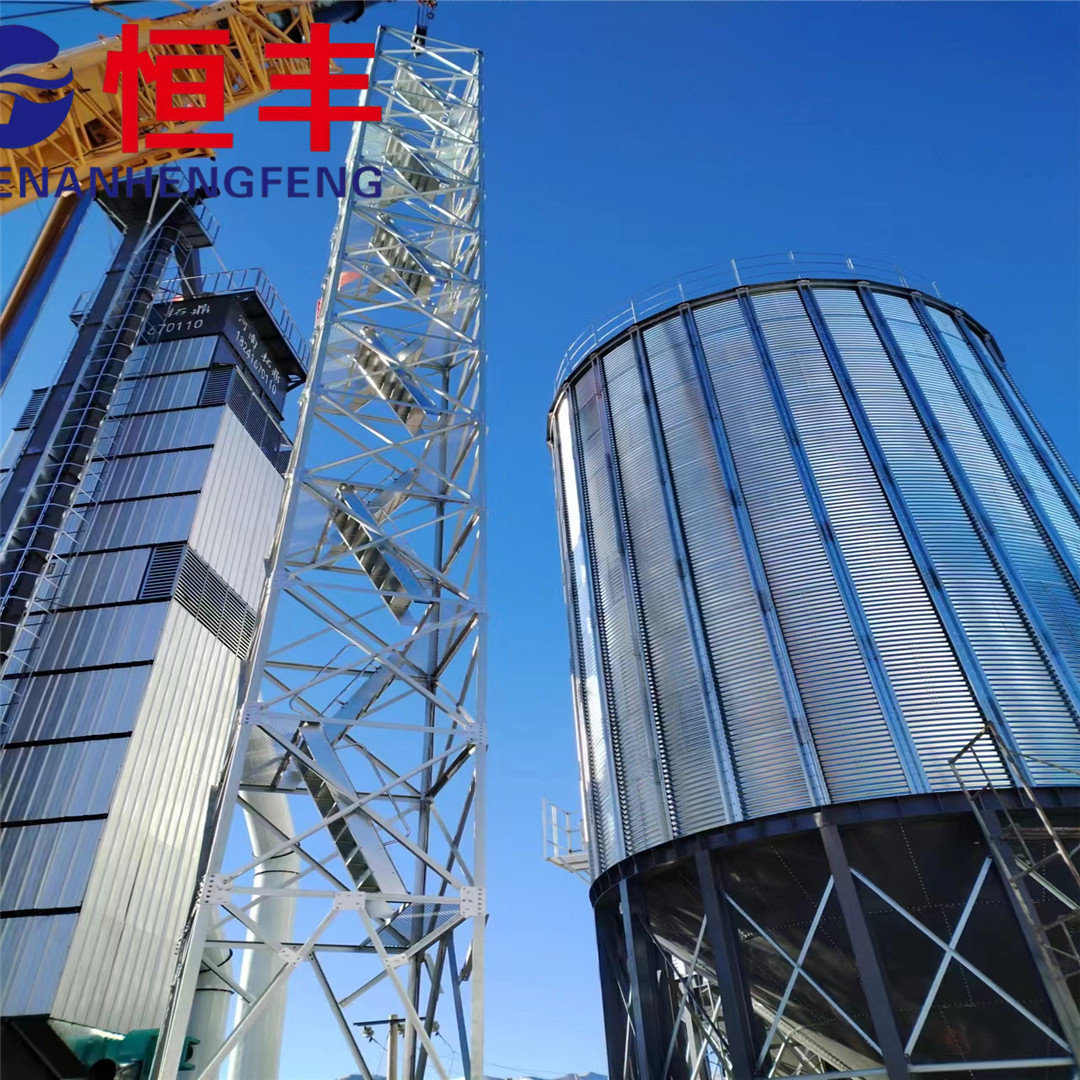

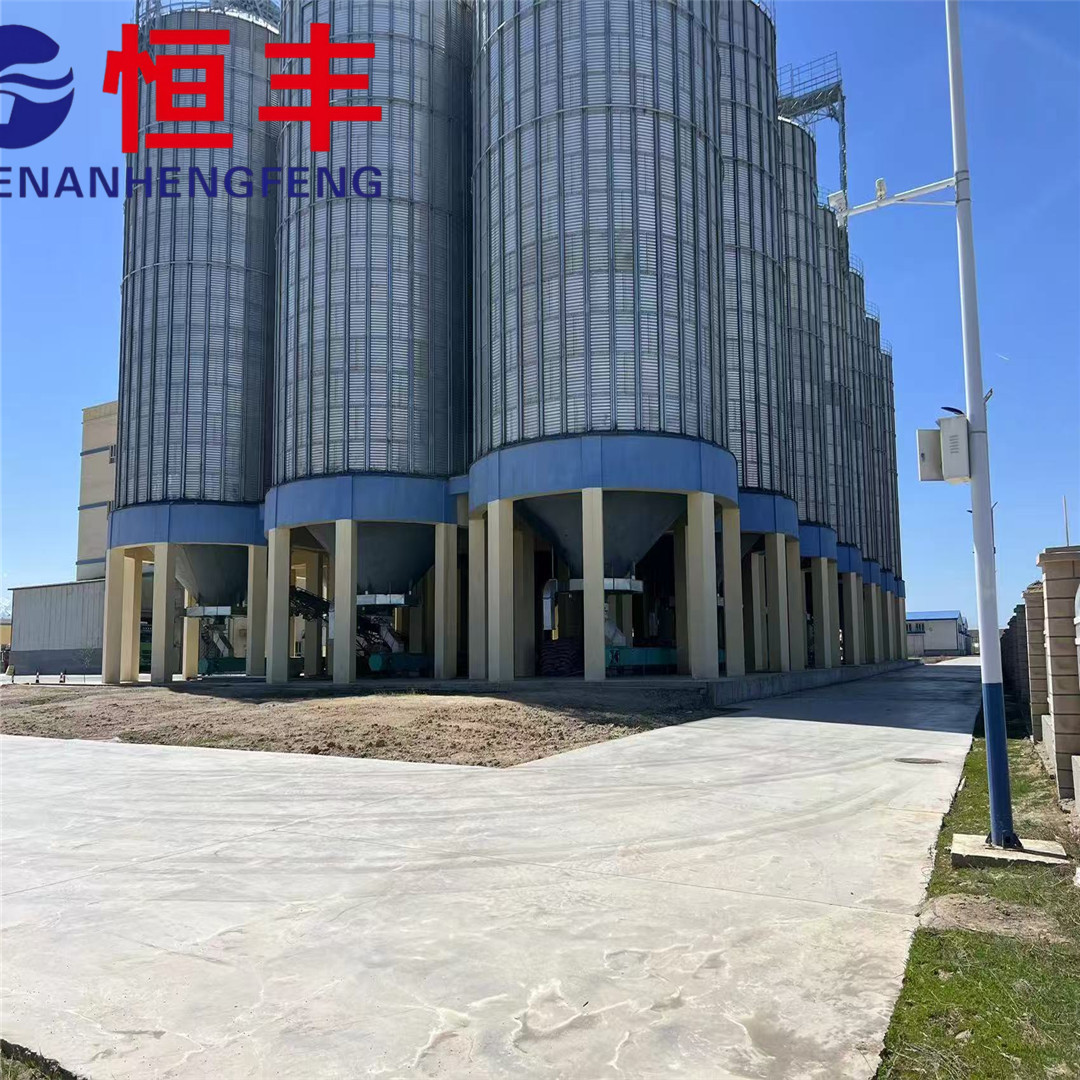

The 300 Ton Conical Bottom Steel Silo

The 300 ton conical bottom steel silo is a large-scale core equipment for storing large quantities of bulk materials, specializing in large-scale closed and fresh-keeping storage of grain, feed raw materials, and industrial granular powders. Adopting a 45 ° standard cone bottom design, material self discharge is achieved with zero residue and no blockage. The warehouse body is made of high zinc coated anti-corrosion steel plate, which is tightly sealed and has stable load-bearing capacity. It is equipped with standardized safety accessories, and the on-site modular assembly is convenient, with strong durability and easy operation and maintenance. It can efficiently meet the needs of large-scale storage, batch transfer, long-term reserve and other essential scenarios.

Quantity:
Availability:





Inquire

The 300 Ton Conical Bottom Steel silo grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat

Product Advantage

1. Modular precision manufacturing and installation: Corrugated sheets are processed by automated cold rolling, punching, and bending production lines, with high dimensional accuracy; Modular assembly of the entire machine on-site, compact footprint, short construction period, supports parallel expansion of multiple warehouses, and is suitable for large-scale site layout.

2. Extra large load-bearing+safety reinforcement design: External thickened M-shaped galvanized columns are used to strengthen the load-bearing capacity, and key load-bearing parts are specially reinforced. The structure is stable under a full load of 300 tons, and safety accessories such as warehouse doors and straight ladders are standard. Daily inspections and material control are safe and convenient.

Technical Parameters

Serial Number	Item	Parameter Details
1	Warehouse height	Warehouse top angle of 25 °, cone bottom angle of 45 °
2	Core specifications of the warehouse body	Storage capacity of 418m ³, bulk density of 313 tons; Warehouse diameter 6.417m, total height 17.33m, warehouse barrel height 11.27m
3	Material of fence and roof panel	1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC350 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate 2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with a zinc content of 275g/㎡ on both sides 3. Thickness of cylinder plate: 2.0mm for the first layer, 1.0mm for the second and third layers, 1.5mm for the fourth and seventh layers, 2.0mm for the eighth and ninth layers, and 2.5mm for the tenth layer
4	Column configuration	External M-type galvanized column with a width of about 312mm; the first and second sections of the column are 3.0mm wide, and the third and fourth sections are 4.0mm wide
5	Cone base and accessories	Steel cone bottom overall spray painting treatment; Column base material H194 × 150; Reinforcement material: Steel 63 * 6; Cone base plate thickness δ 4mm
6	Ancillary facilities	1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse
7	Production, installation, and standards	On site installation, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: 8.8 grade high-grade galvanized bolts (Shanghai Hardiwei/Jinyi) are used for the warehouse roof and cylinder body, 10.9 grade high-strength galvanized bolts (Shanghai Hardiwei/Jinyi) are used for key load-bearing parts, and matched with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets (Fujian Yongda); Sealing treatment: The joint of the enclosure board is sealed with Shanghai Kejian Aviation Sealing Cement, which is corrosion-resistant, highly viscous, and has excellent sealing performance (different from conventional bolts, gaskets, and rubber strips); Service life: 30 years

Product Uses

1. Large grain depots/grain storage centers: Suitable for cross season storage of wheat, corn, and rice in national grain depots and regional storage bases, with a large capacity of 300 tons to meet bulk storage needs. The 45 ° cone bottom is combined with mechanized unloading, greatly improving grain turnover efficiency and reducing storage losses by sealing and moisture-proof.

2. Large scale feed processing group: As a centralized transfer warehouse for core raw materials such as soybean meal, corn, and bran in large-scale feed factories, it reduces the frequency of feeding with large capacity, and the high anti-corrosion board is resistant to raw material corrosion. The self discharge seamlessly connects with the automated production line to ensure the continuity of large-scale production.
