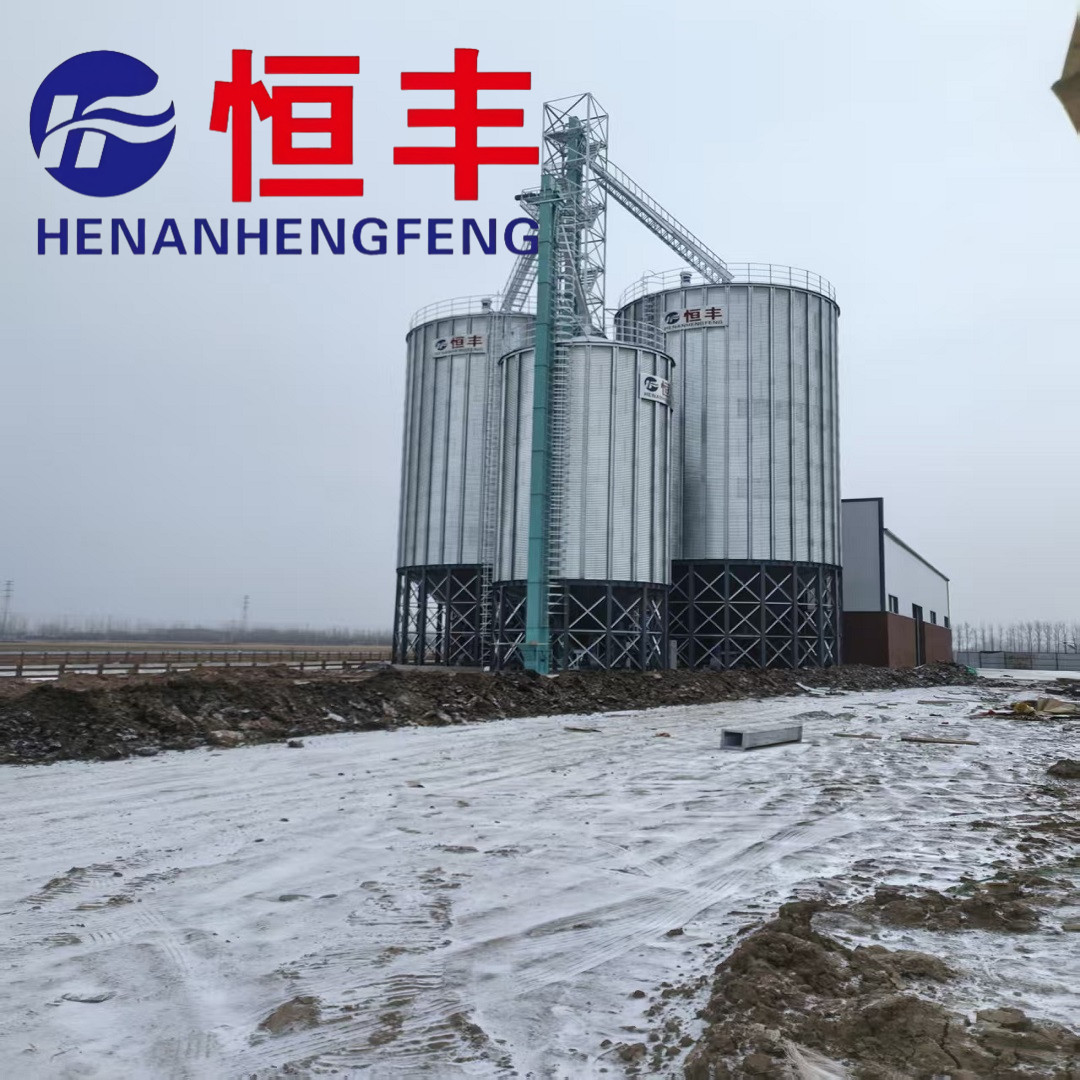

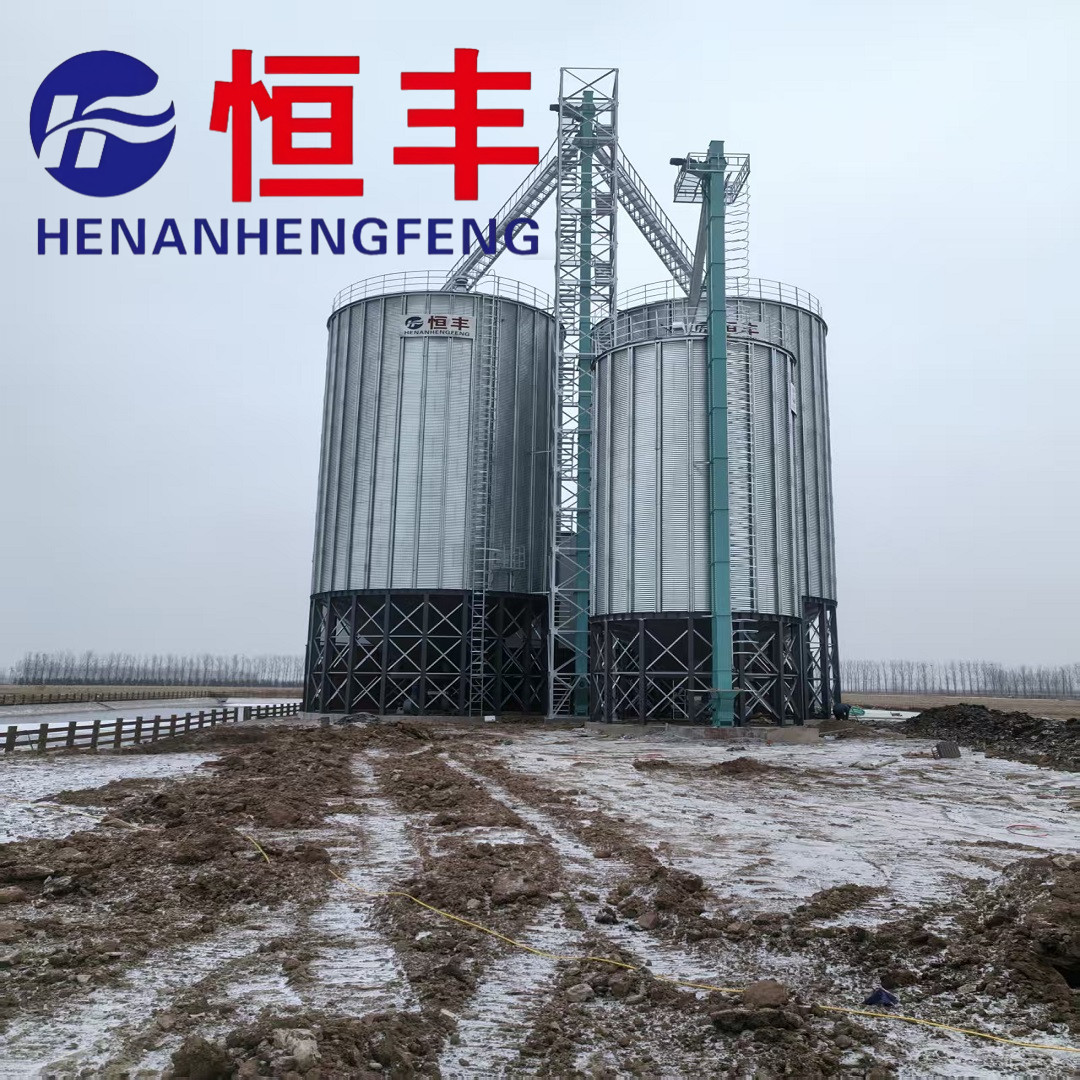

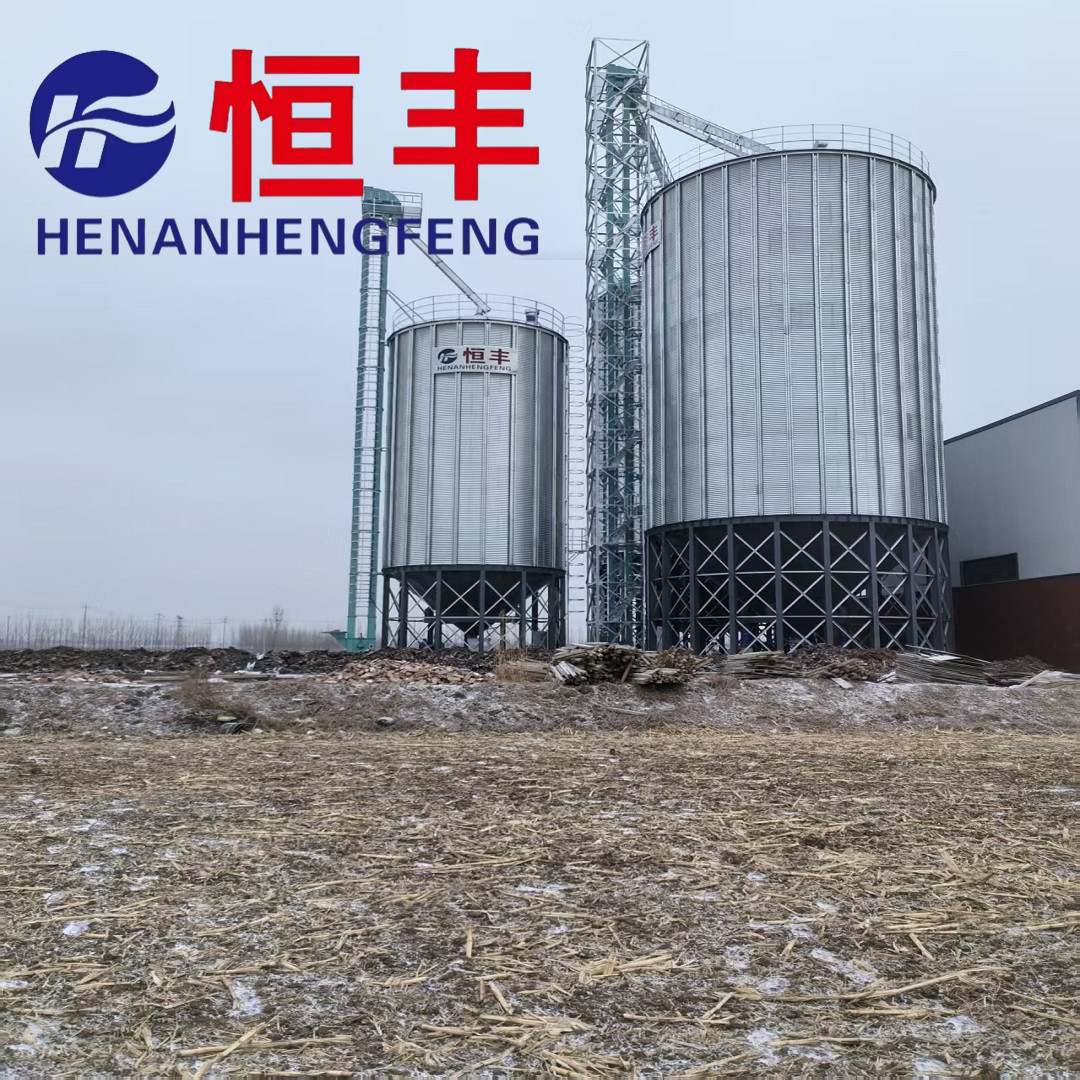

The 500 Ton Conical Bottom Steel Silo

The 500 ton conical bottom steel silo is a large-scale storage equipment designed for bulk materials, specializing in the large-scale closed storage of grain, feed raw materials, and industrial granular powders. Adopting a 45 ° standard cone bottom design, material self discharge, zero residue and no blockage are achieved. The warehouse body is customized with high zinc layer anti-corrosion steel plate, which is tightly sealed, has strong load-bearing capacity, and is equipped with standardized safety accessories. The on-site modular assembly is convenient, durable, and has low operation and maintenance costs, which can meet the core needs of large-scale base bulk storage, long-term reserve, and transit turnover.

Quantity:
Availability:





Inquire

The 500 Ton Conical Bottom Steel silo grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat

Product Advantage

1. 45 ° Cone Bottom Self Flow Unloading (Zero Residue Core Technology): Adopting a standardized 45 ° cone bottom inclination structure, it completely solves the problems of material bridging, blockage, and residue at the bottom of the warehouse. The unloading efficiency is 90% higher than that of a flat bottomed warehouse, and it is suitable for tightly sealed storage of various types of bulk materials such as grain, granular materials, and industrial powders, without the need for manual clearance throughout the entire process.

2. High anti-corrosion sheet+ultra long service life: Selected from Handan Iron and Steel double-sided 275g/㎡ high zinc layer zinc aluminum magnesium sheet, the corrosion resistance of the warehouse roof is 5 times that of ordinary galvanized sheet, and the warehouse body is resistant to deformation and weathering. Paired with 8.8-10.9 level national standard high-strength bolts, the design service life is up to 30 years, and the full cycle operation and maintenance cost is extremely low.

Technical Parameters

Serial Number	Item	Parameter Details
1	Warehouse height	Warehouse top angle of 25 °, cone bottom angle of 45 °
2	Core specifications of the warehouse body	Warehouse capacity 718m ³, bulk density 538 tons; The diameter of the warehouse is 8.25m, the overall height is 18.87m, and the height of the warehouse barrel is 11.27m
3	Material of fence and roof panel	1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC340 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate 2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with a zinc content of 275g/㎡ on both sides 3. Thickness of cylinder plate: 2.0mm for the first layer, 1.0mm for the second and third layers, 1.5mm for the fourth and sixth layers, 2.0mm for the seventh and ninth layers, and 2.5mm for the tenth layer
4	Column configuration	External M-type galvanized column with a width of about 312mm; section 1-3 columns with a width of 3.0mm, section 4 columns with a width of 4.0mm, and section 5 columns with a width of 5.0mm
5	Cone base and accessories	Steel cone bottom overall spray painting treatment; Column base material H244 × 175; Reinforcement material: Steel 63 * 6; Cone base plate thickness δ 4-6mm
6	Ancillary facilities	1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse

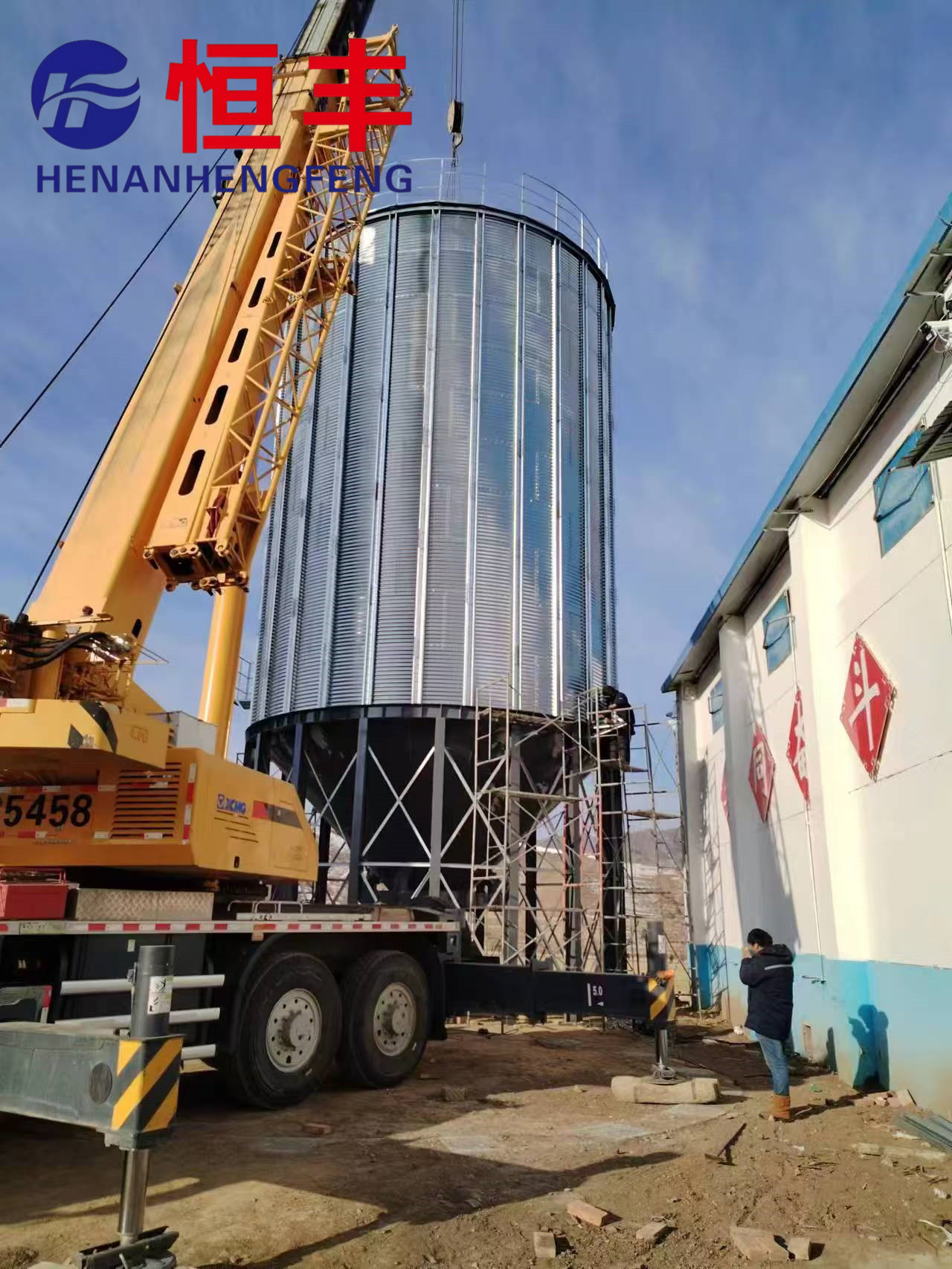

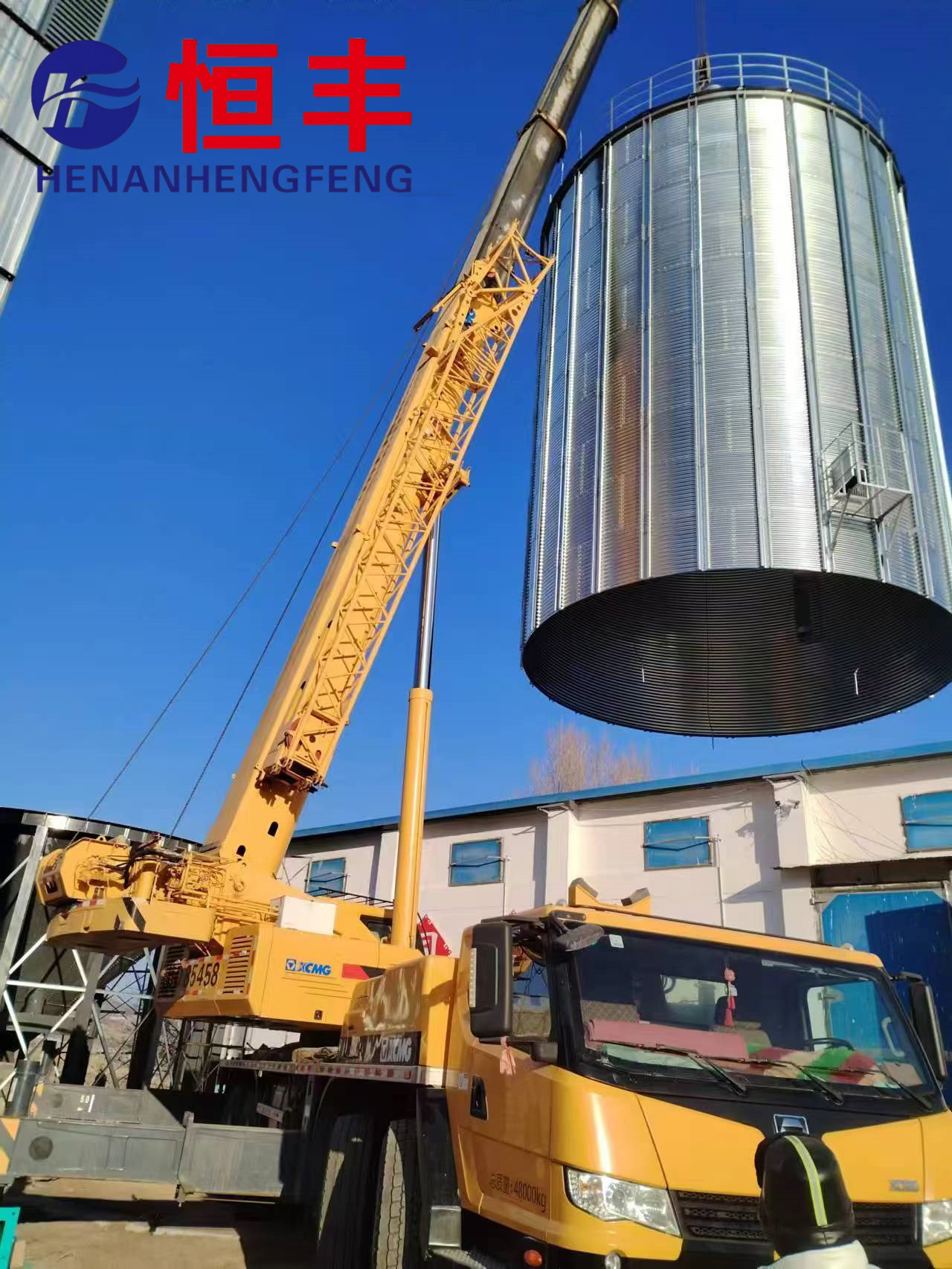

7	Production, installation, and standards	On site installation, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: 8.8 grade high-grade galvanized bolts (Shanghai Hardiwei/Jinyi) are used for the warehouse roof and cylinder body, 10.9 grade high-strength galvanized bolts (Shanghai Hardiwei/Jinyi) are used for key load-bearing parts, and matched with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets (Fujian Yongda); Sealing treatment: The joint of the enclosure board is sealed with Shanghai Kejian Aviation Sealing Cement, which is corrosion-resistant, highly viscous, and has excellent sealing performance (different from conventional bolts, gaskets, and rubber strips); Service life: 30 years

Product Uses

1. Large grain depots and regional storage bases: Suitable for cross season storage of wheat, corn, and rice in national grain depots and local grain distribution centers, with a large capacity of 500 tons to meet the needs of large-scale storage. The 45 ° cone bottom is matched with mechanized operations, with efficient unloading without residue, sealed and moisture-proof, greatly reducing grain mold and loss.

2. Centralized storage of raw materials for large feed groups: As a transit storage warehouse for core raw materials such as soybean meal, corn, and bran for leading feed enterprises, it has a large capacity to reduce frequent feeding costs. The high anti-corrosion board is resistant to raw material corrosion, and the self discharge seamlessly connects with automated production lines to ensure uninterrupted large-scale production.
