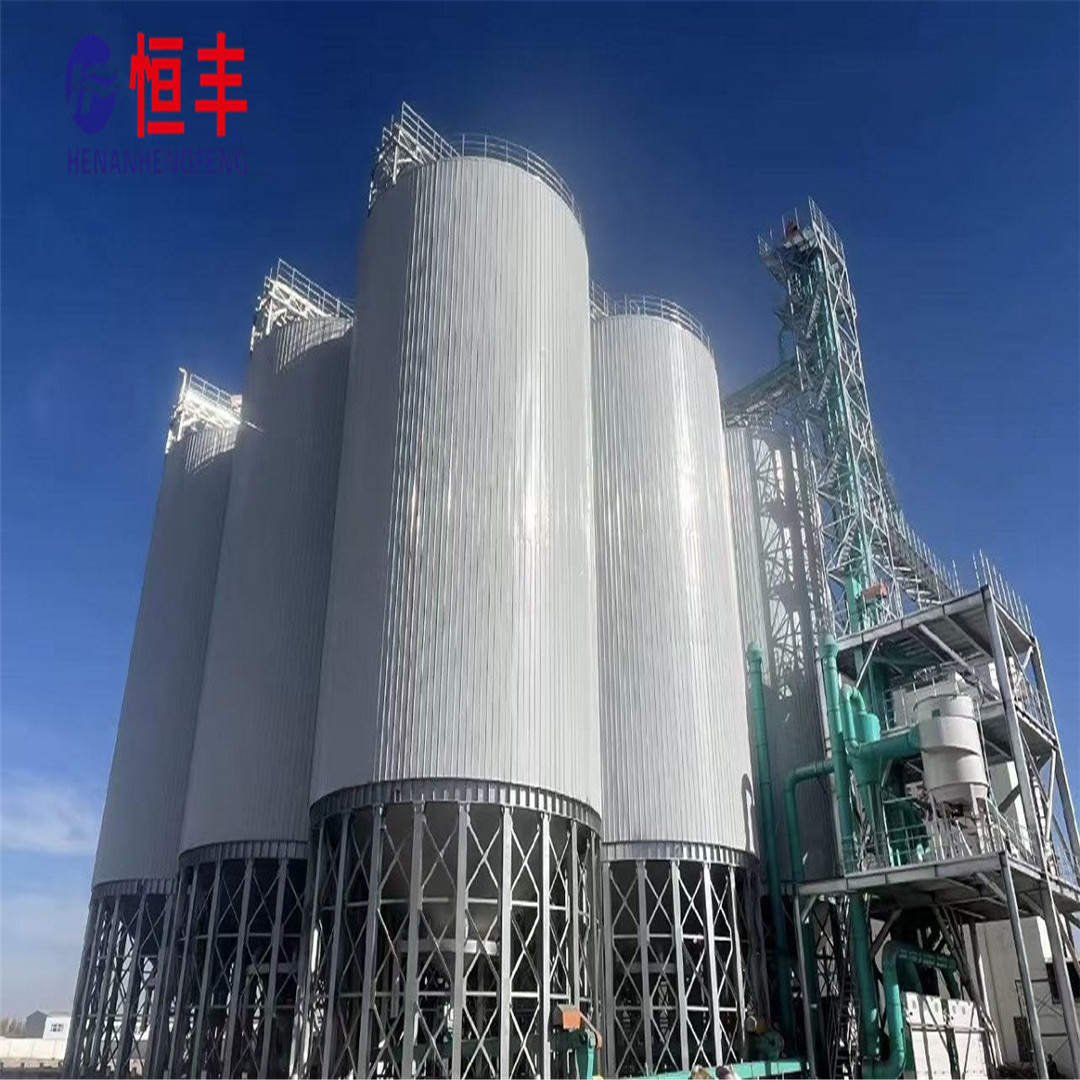

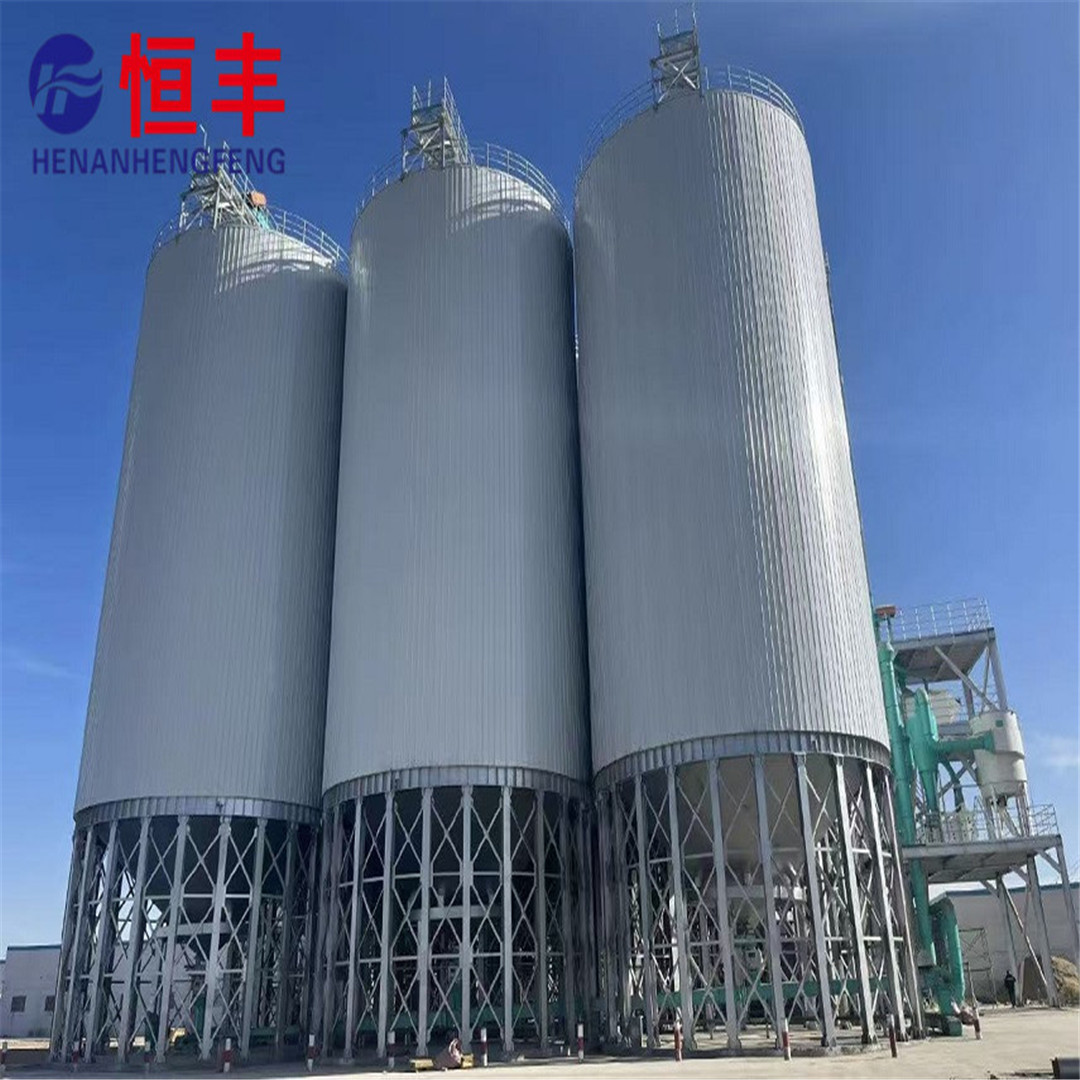

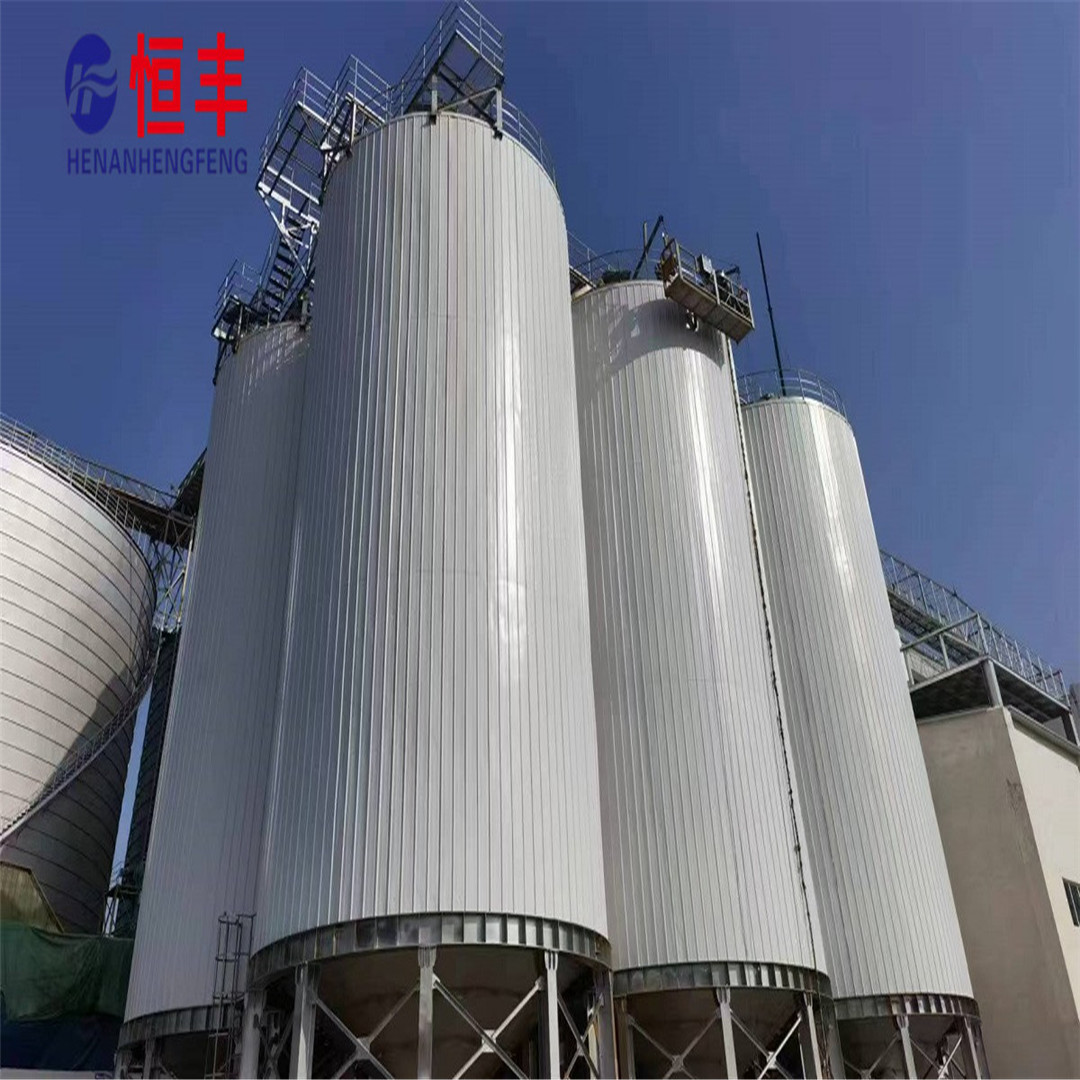

The 1000 Ton Conical Bottom Steel Silo

The 1000 ton conical bottom steel plate warehouse is a heavy-duty storage equipment specially designed for large-scale bulk materials, focusing on the large-scale sealed and fresh-keeping storage of grain, feed raw materials, and industrial granular powders. Adopting a 45 ° standard cone bottom structure, material self discharge is achieved with zero residue and no blockage. The warehouse body is made of high-quality zinc coated anti-corrosion steel plate, which is tightly sealed and has strong load-bearing capacity. It is equipped with standardized safety accessories, and can be assembled in a modular manner on site, with strong durability and low operation and maintenance costs. It can meet the core needs of large-scale grain depots, industrial parks, bulk storage, long-term reserve, and transit turnover.

Quantity:
Availability:





Inquire

The 1000 Ton Conical Bottom Steel Plate Warehouse grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat

Product Advantage

1. Modular precision manufacturing and installation: Corrugated sheets are processed by automated cold rolling, punching, and bending production lines, with high dimensional accuracy and excellent splicing fit; Modular assembly of the entire machine on-site, compact footprint, short construction period, supports parallel expansion of multiple warehouses, and is suitable for large-scale site layout.

2. Extra large load-bearing+safety reinforcement design: External thickened M-shaped galvanized columns are used to strengthen the overall load-bearing capacity, and key load-bearing parts are specially reinforced. The structure is stable under a full load of 1000 tons, and safety accessories such as warehouse doors and straight ladders are standard. Daily inspections and material control are safe and convenient.

Technical Parameters

Serial Number	Item	Parameter Details
1	Warehouse height	Warehouse top angle of 25 °, cone bottom angle of 45 °
2	Core specifications of the warehouse body	Storage capacity of 1468m ³, bulk density of 1101 tons; Warehouse diameter 10.084m, total height 24.73m, warehouse barrel height 15.75m
3	Material of fence and roof panel	1. Warehouse roof: 1.0mm thick cold base zinc aluminum magnesium SGC350 steel plate, with heat and corrosion resistance 5 times that of ordinary galvanized steel plate 2. Fence: High quality Handan Iron and Steel flower free oil-free double-sided galvanized BGH340/SGH440+275 corrugated board, with zinc aluminum magnesium content on both sides of 275g/㎡ 3. Thickness of cylinder plate: 2.0mm for the first layer, 1.5mm for the second to fifth layers, 2.0mm for the sixth to tenth layers, 2.5mm for the eleventh to twelfth layers, and 3.0mm for the thirteenth to fourteenth layers
4	Column configuration	External M-type galvanized column with a width of approximately 312mm; columns 1-9 are 3.0mm wide, columns 10-12 are 4.0mm wide, and columns 13-14 are 5.0mm wide
5	Cone base and accessories	Steel cone bottom overall spray painting treatment; Column base material H244 × 175 (national standard manganese steel); Reinforcement material: Steel 63 * 6; Cone base plate thickness δ 6-8mm
6	Ancillary facilities	1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse
7	Production, installation, and standards	On site installation, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines with high precision; Bolt configuration: The warehouse roof and cylinder are equipped with 8.8 grade high-grade galvanized bolts (Shanghai Hardiwei/Jinyi), and key load-bearing parts are equipped with 10.9 grade high-strength galvanized bolt components (Shanghai Hardiwei/Jinyi), matched with waterproof, wear-resistant, corrosion-resistant high-grade rubber gaskets; Sealing treatment: The seam of the enclosure board is sealed with aviation sealing adhesive, which is corrosion-resistant, highly viscous, and has excellent sealing performance; Service life: 30 years

Product Uses

1. Large scale agricultural reclamation groups/planting bases: for large scale agricultural reclamation bases and large-scale planting consortia, bulk grain and cash crops are stored in a centralized way, taking into account the storage of granular agricultural materials, with a stable and durable structure, to achieve the storage of super bulk materials in areas and centralized scheduling management.

2. Industrial super bulk powder/particle storage: Suitable for the storage of super bulk materials such as cement clinker, mineral powder, plastic particles, etc. in the building materials and chemical industries. The high-strength warehouse meets the heavy load requirements, is sealed to prevent dust leakage, eliminates material bridging and blockage, and is suitable for enterprise large-scale material storage control.
