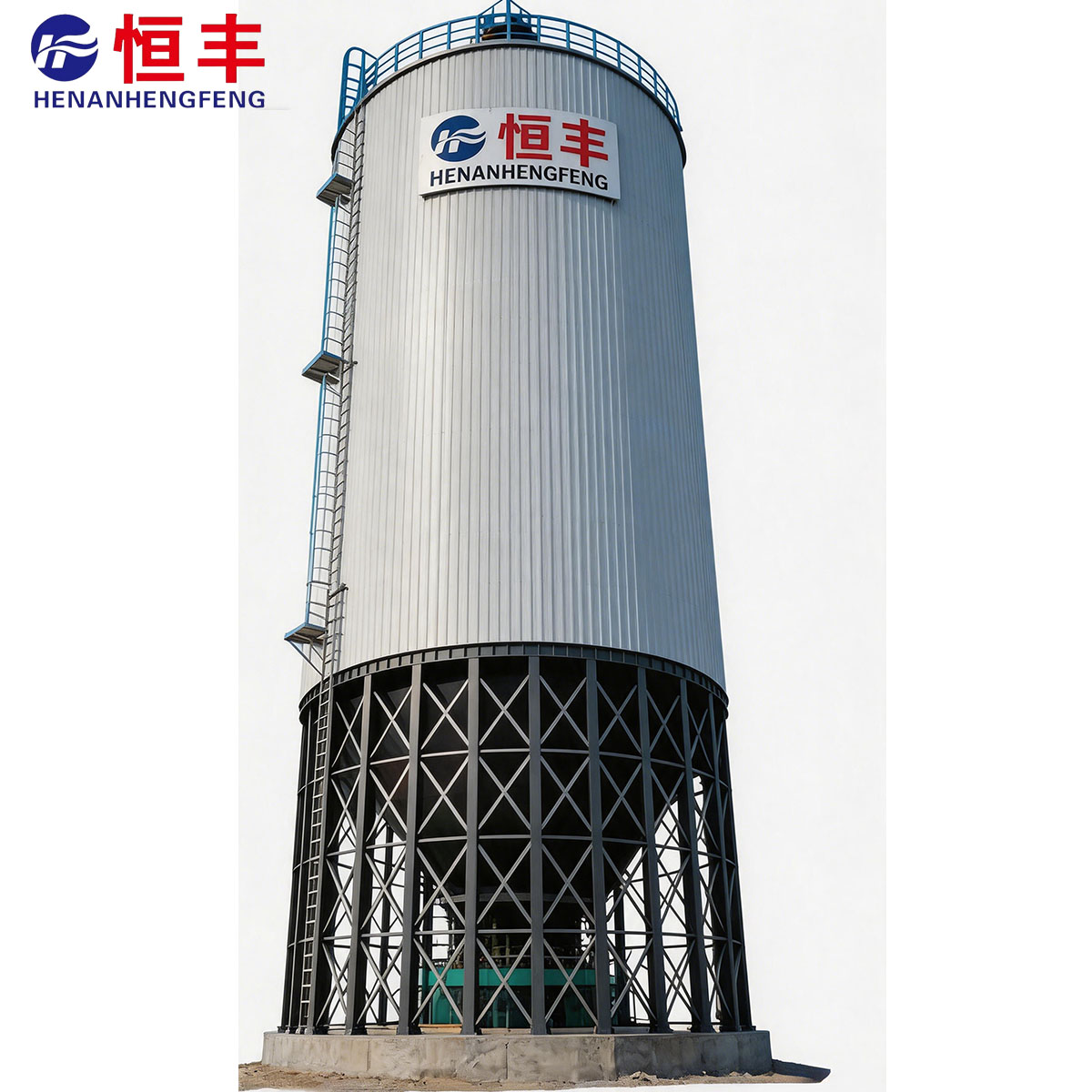

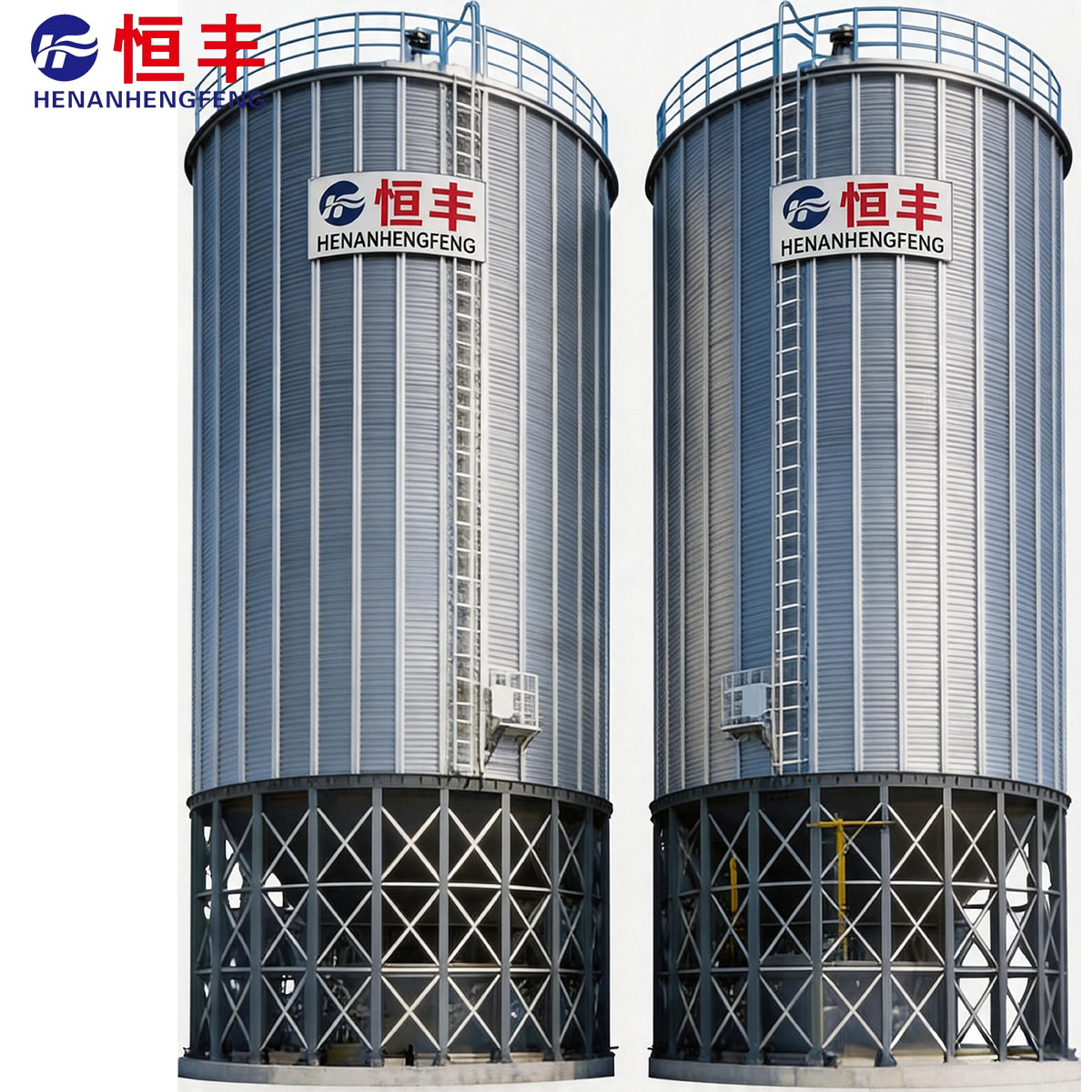

The 200 Ton Conical Bottom Steel Silo

The 200 ton conical bottom steel silo is a medium-sized storage equipment specially designed for the storage of large and medium-sized bulk materials, focusing on the sealed and fresh-keeping storage of grain, granular materials, and powder materials. The 45 ° cone bottom design ensures material self discharge, no residue or blockage. The warehouse is made of high zinc coated anti-corrosion steel plate, which is tightly sealed and has stable load-bearing capacity. It is equipped with standardized safety accessories, easy to assemble on site, controllable land occupation, strong durability and easy operation and maintenance. It is suitable for large-scale material turnover and long-term storage, and has a wide range of applicable scenarios.

Quantity:
Availability:





Inquire

Model:
The 200 Ton Conical Bottom Steel Silo
Brand:
HengFeng

The 200 Ton Conical Bottom Steel silo Customized Silos grain storage silo galvanized grain silo Corrugated Steel Silos steel storage silos prices for wheat

Technical Parameters

No.	Item Category	Detailed Parameters & Configuration Description
1	Angle Design	Silo roof angle: 25°; cone bottom angle: 45°. The angle design fully complies with grain storage industry operation specifications.
2	Core Silo Body Specifications	Total silo volume: 275 m³; grain storage capacity: 206 tons; silo diameter: 5.5 m; overall height: 15.49 m; cylinder wall height: 10.15 m.
3	Plate Material & Layer Thickness	Silo roof plate: 1.0 mm cold-rolled Zinc-Aluminum-Magnesium SGC340 steel sheet, heat and corrosion resistance is 5 times that of ordinary galvanized steel sheet. Cylinder wall plates: High-quality double-sided galvanized corrugated steel plate BGH340/SGH440+275 from Handan Iron & Steel, spangle-free & oil-free, double-sided zinc coating weight 275 g/㎡. Layer thickness distribution: • Layer 1: 1.5 mm • Layer 2–3: 1.0 mm • Layer 4–7: 1.5 mm • Layer 8–9: 2.0 mm
4	External Column Specification	External M-type galvanized columns, unfolded width approx. 312 mm. Section thickness by segments: • Section 1–2: 3.0 mm • Section 3–5: 4.0 mm Superior structural stability.
5	Steel Cone Bottom & Supporting Components	Whole steel cone bottom treated with anti-corrosion spray painting. • Column base: H-beam H200×150 • Tie bar: 63×6 angle steel • Cone bottom plate thickness: δ4–6 mm
6	Auxiliary Safety Facilities	Complete supporting safety accessories: • 1 set maintenance manhole on silo roof • 1 set silo access door on cylinder wall • 1 set vertical climbing ladder inside the silo • 1 extra vertical climbing ladder from ground to lower silo door (outside)
7	Installation Technology & Connection Configuration	On-site assembly mode. Silo corrugated plates are processed by cold rolling, punching, arc bending and cutting production lines with high manufacturing precision. Fasteners: Grade 8.8 high-strength galvanized bolts (brands: Shanghai Hardway, Jinyi) for silo roof and cylinder walls; Grade 10.9 upgraded high-strength galvanized bolts for key load-bearing positions. Sealing system: Waterproof, wear-resistant & anti-corrosion rubber nylon gaskets from Fujian Yongda for all bolts; Shanghai Kejian aviation sealing putty applied on wall plate joints — excellent corrosion resistance and airtightness. Designed service life: 30 years. Distinct from ordinary simple construction using standard bolts, common gaskets and regular rubber strips without aviation sealing treatment.

Product Uses

1. Large grain depots/grain storage centers: Suitable for cross season storage of wheat, corn, and rice in national grain depots and regional storage bases, with a large capacity of 300 tons to meet bulk storage needs. The 45 ° cone bottom is combined with mechanized unloading, greatly improving grain turnover efficiency and reducing storage losses by sealing and moisture-proof.

2. Large scale feed processing group: As a centralized transfer warehouse for core raw materials such as soybean meal, corn, and bran in large-scale feed factories, it reduces the frequency of feeding with large capacity, and the high anti-corrosion board is resistant to raw material corrosion. The self discharge seamlessly connects with the automated production line to ensure the continuity of large-scale production.

Product Advantage

1. Modular precision manufacturing and installation: Corrugated sheets are processed by automated cold rolling, punching, and bending production lines, with high dimensional accuracy; Modular assembly of the entire machine on-site, compact footprint, short construction period, supports parallel expansion of multiple warehouses, and is suitable for large-scale site layout.

2. Extra large load-bearing+safety reinforcement design: External thickened M-shaped galvanized columns are used to strengthen the load-bearing capacity, and key load-bearing parts are specially reinforced. The structure is stable under a full load of 300 tons, and safety accessories such as warehouse doors and straight ladders are standard. Daily inspections and material control are safe and convenient.
