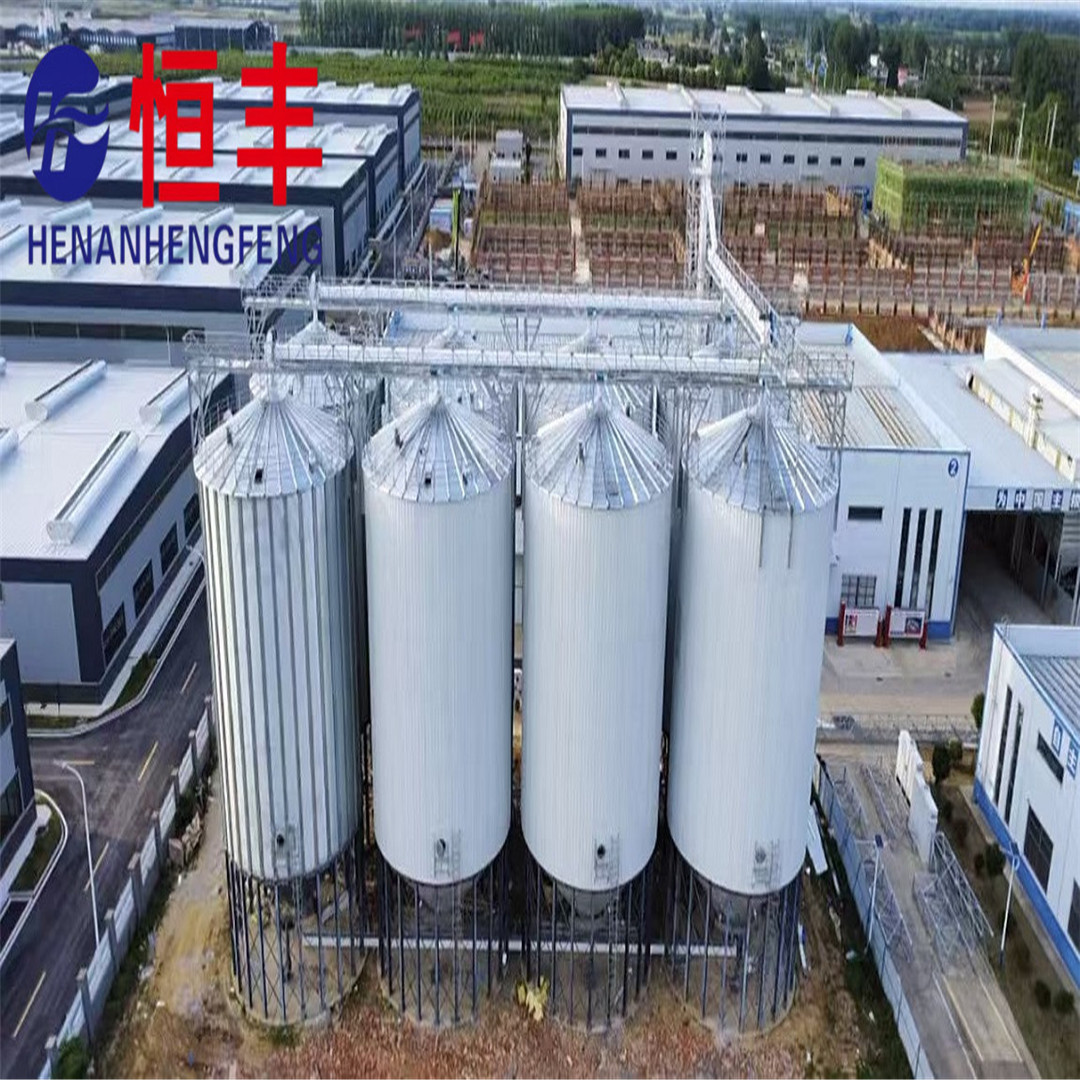

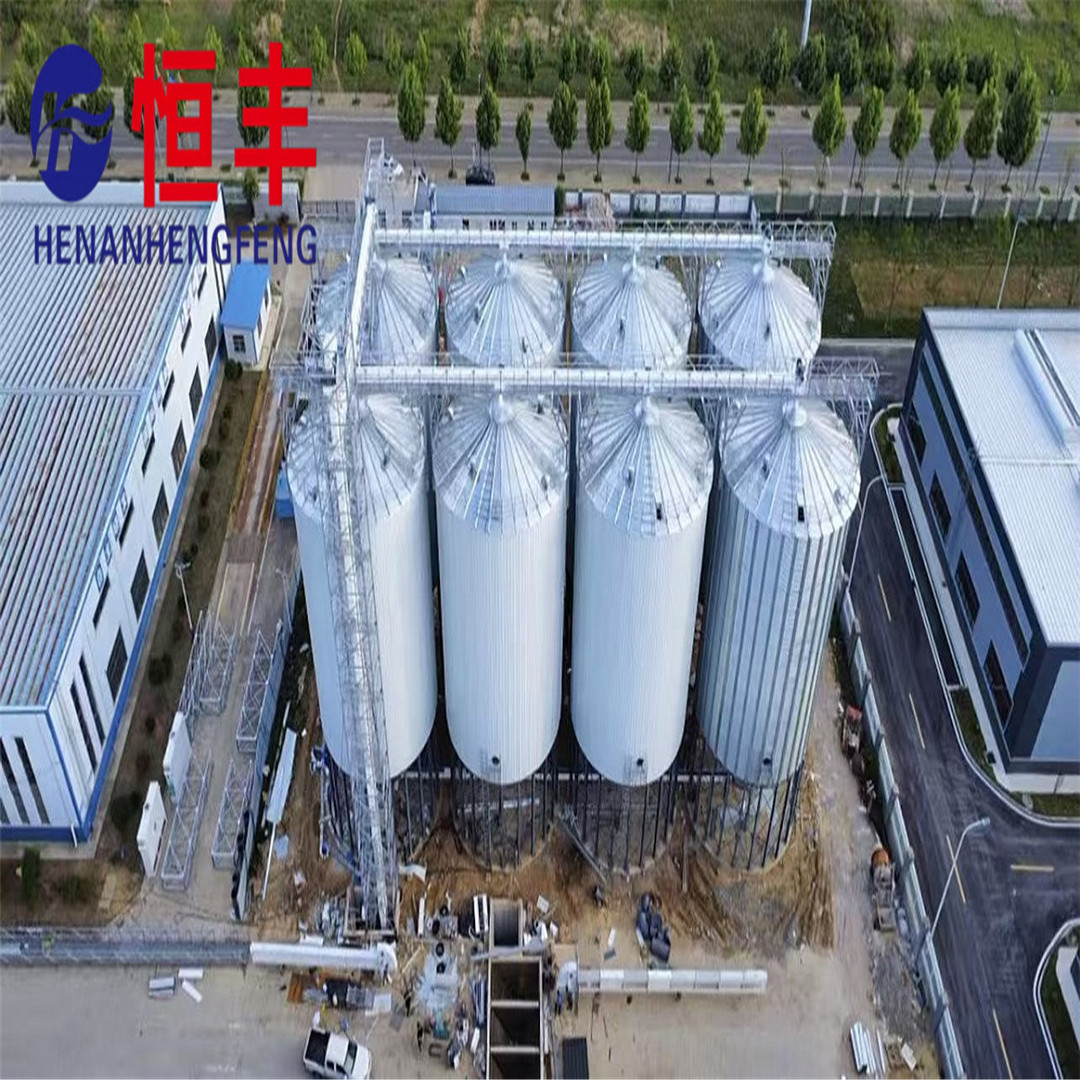

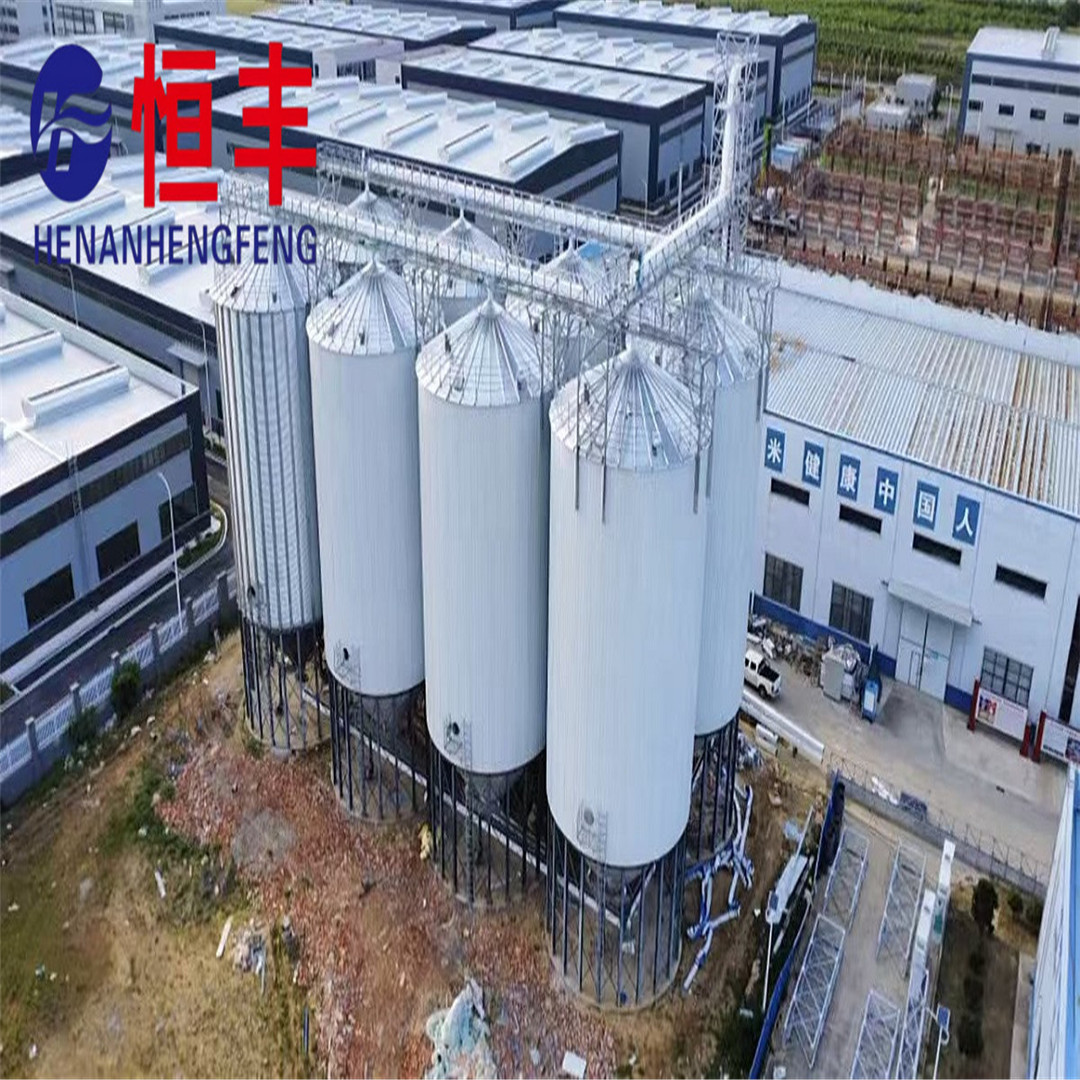

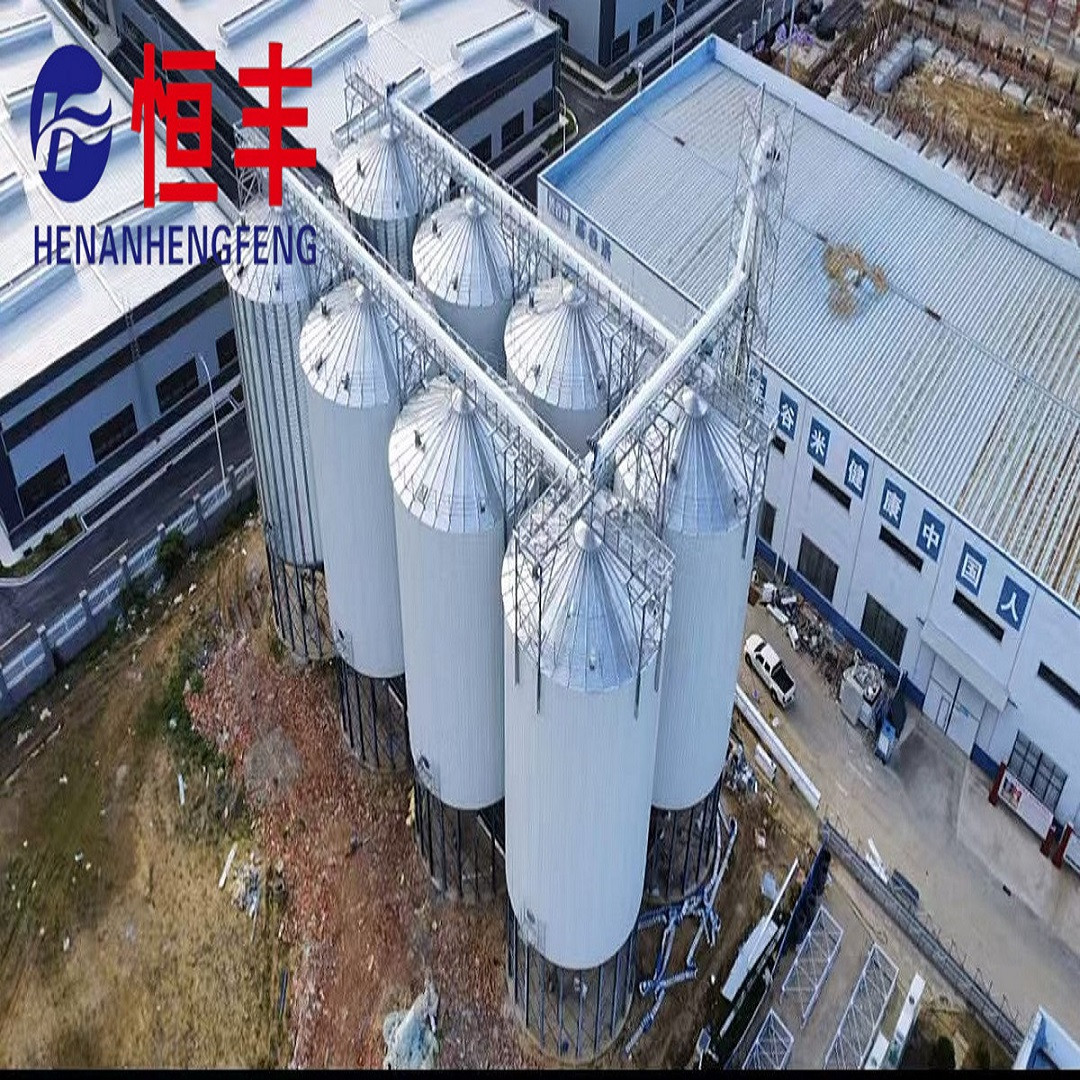

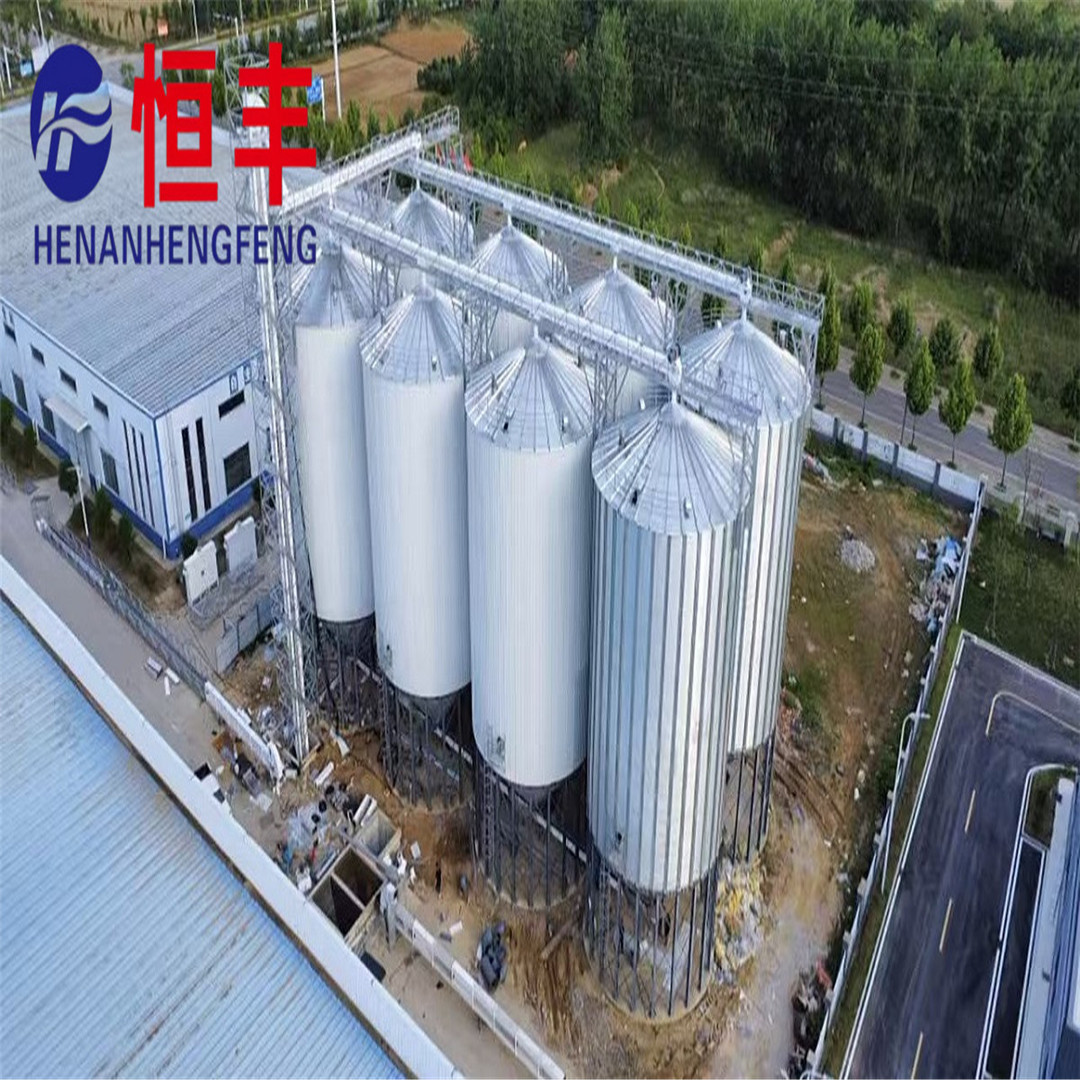

The 600 Ton Conical Bottom Steel Silo

The 600 ton conical bottom steel silo is a large-scale storage equipment specially designed for ultra large bulk materials, specializing in large-scale sealed and fresh-keeping storage of grain, feed raw materials, and industrial granular powders. Adopting a 45 ° standard cone bottom structure, material self discharge is achieved with zero residue and no blockage. The warehouse body is made of high zinc layer anti-corrosion steel plate, which is finely crafted, tightly sealed, and has strong load-bearing capacity. It is equipped with standardized safety accessories, and the on-site modular assembly is convenient, with strong durability and low operation and maintenance costs. It can meet the core needs of large-scale storage bases, industrial parks for bulk storage, long-term reserves, and transit turnover.

Quantity:
Availability:





Inquire

The 600 Ton Conical Bottom Steel Plate Warehouse grain storage silo grain silo storage silo silo steel grain silo price grain storage steel silo steel storage silos prices for wheat

Product Advantage

1. Double precision sealing and moisture-proof system: Adopting the dual sealing process of aviation sealing adhesive and high-grade rubber nylon gasket, the joint seam of the warehouse body has zero leakage, effectively blocking moisture, dust, and pests, strictly ensuring the quality of stored materials, and meeting the long-term sealed storage standards for ultra large grain and raw materials.

2. Modular precision manufacturing and installation: Corrugated sheets are processed by automated cold rolling, punching, and bending production lines, with high dimensional accuracy; Modular assembly of the entire machine on-site, compact footprint, short construction period, supports parallel expansion of multiple warehouses, and is suitable for large-scale site layout.

Technical Parameters

Serial Number	Item	Parameter Details
1	Warehouse height	Warehouse top angle of 25 °, cone bottom angle of 45 °
2	Core specifications of the warehouse body	Warehouse capacity of 838m ³, bulk density of 628 tons; Warehouse diameter 8.25m, total height 21.11m, warehouse barrel height 13.51m
3	Material of fence and roof panel	Enclosure: High quality Handan Iron and Steel double-sided galvanized steel plate with flower patterns, with a zinc coating of 275g/㎡ on both sides Warehouse roof: aluminum zinc coated steel plate, thickness 1mm Cylinder board: 1st layer 2.0mm, 2nd and 3rd layers 1.0mm, 4th and 6th layers 1.5mm, 7th and 10th layers 2.0mm, 11th and 12th layers 2.5mm
4	Column configuration	External M-type galvanized column with a width of about 312mm. The first to third section columns are 3.0mm wide, and the fourth to sixth section columns are 4.0mm wide
5	Cone base and accessories	Steel cone bottom overall spray painting treatment Column base material: H244 × 175 Reinforcement material: Steel 63 × 6 Cone bottom plate thickness: δ 4-6mm
6	Ancillary facilities	1 set of manhole for top maintenance and 1 set of silo shaft; 1 set of vertical climbing ladder inside the warehouse and 1 set of vertical climbing ladder outside the warehouse
7	Production, installation, and standards	On site installation, the corrugated plate of the silo is cold-rolled and produced by punching, bending, and shearing production lines. The high-precision silo top and cylinder are made of 8.8 grade galvanized bolts, and the key load-bearing parts are made of 10.9 grade high-strength galvanized bolt components Service life: 30 years

Product Uses

1. Modern agricultural industrialization consortium: for large-scale planting consortium and agricultural reclamation base, the bulk grain and cash crop shall be stored in a centralized manner, and the granular agricultural means of production reserve shall be taken into account. The structure shall be stable and durable, so as to realize the storage and centralized scheduling of super bulk materials in different areas and simplify the storage management.

2. Storage of industrial bulk powder particles: Suitable for the storage of super bulk materials such as cement clinker, mineral powder, plastic particles, etc. in the building materials and chemical industries. The high-strength warehouse meets the heavy load requirements, is sealed to prevent dust leakage, and prevents material bridging and blockage. It is also suitable for batch warehousing control in industrial enterprises.
