A Practical Engineering Guide for Bulk Grain Handling Systems

Executive Summary

Chain conveyors are among the most reliable enclosed conveying systems used in modern grain storage facilities. Unlike belt conveyors, chain conveyors move grain using drag chains inside enclosed steel casings, making them particularly suitable for applications where dust control, environmental protection, and compact layouts are priorities.

This handbook examines chain conveyors from an engineering perspective, covering design principles, capacity calculations, structural components, system integration, lifecycle management, and procurement considerations. It is intended for engineers, EPC contractors, plant designers, maintenance teams, and procurement managers involved in grain storage and Bulk material handling projects.

Chapter 1 — Where Chain Conveyors Fit in a Grain Handling System

Many new engineers assume that all conveyors perform the same function. In reality, each conveyor type is optimized for a different task.

A typical grain handling system may include:

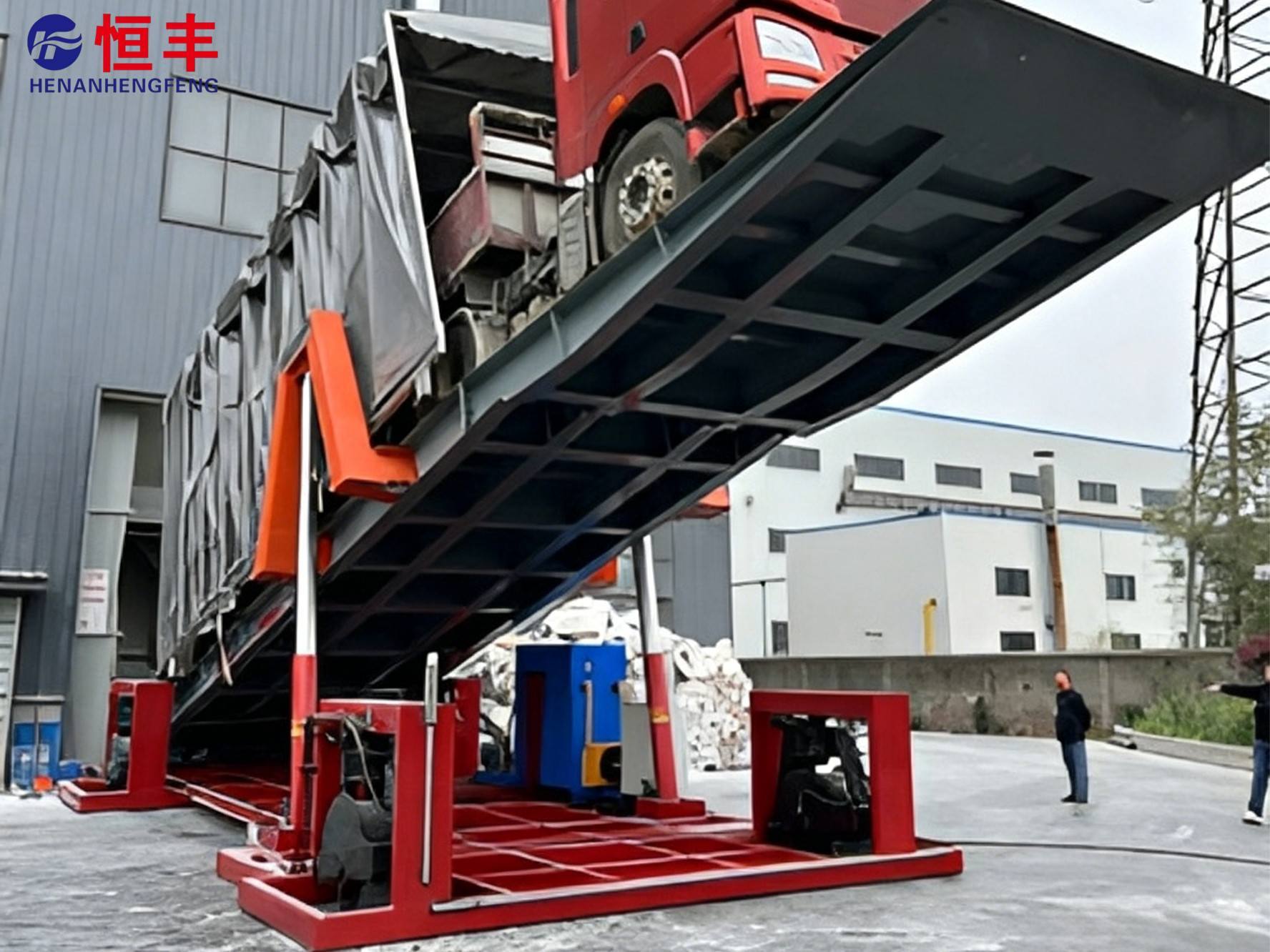

Truck Receiving

        │

Bucket Elevator

        │

Chain Conveyor

        │

Grain Cleaner

        │

Grain Dryer

        │

Steel Silo

        │

Chain Conveyor

        │

Loading System

The chain conveyor acts as the horizontal transfer link between major process units. Its enclosed design minimizes grain loss and helps maintain a cleaner operating environment.

Chapter 2 — Why Chain Conveyors Are Widely Used

Chain conveyors are selected not because they are the cheapest option, but because they provide predictable performance in demanding operating conditions.

Their advantages include:

· Enclosed conveying that reduces dust emissions.

· Compact installation where space is limited.

· Stable performance over long operating periods.

· Ability to handle multiple transfer points.

· Reduced grain spillage.

· Good compatibility with automation systems.

For facilities that prioritize cleanliness and controlled material flow, these characteristics often outweigh the higher initial investment compared with open belt conveyors.

Chapter 3 — Working Principle

A chain conveyor transports Material by pulling a series of flights attached to a chain through an enclosed trough.

The operating cycle consists of four stages:

1. Grain enters the inlet section.

2. Flights drag the Material along the trough.

3. Grain remains enclosed during transport.

4. Material exits through one or more discharge outlets.

Unlike a screw conveyor, the Material moves as a controlled Bulk layer rather than rotating around a shaft. This reduces unnecessary agitation and can help limit kernel damage when handling grain.

Chapter 4 — Structural Architecture

Understanding the mechanical structure helps engineers evaluate durability and maintenance requirements.

Drive Unit

The drive system converts motor power into chain movement.

Key components include:

· Electric motor

· Gear reducer

· Drive shaft

· Drive sprocket

· Torque limiter (where specified)

Engineering focus:

· Stable torque transmission

· Efficient power conversion

· Easy maintenance access

Conveyor Trough

The trough forms the enclosed conveying path.

Design considerations include:

· Structural rigidity

· Wear resistance

· Ease of inspection

· Dust sealing

· Corrosion protection

Material thickness and reinforcement should be selected according to the conveying capacity and operating conditions.

Chain Assembly

The chain is the core moving component.

Selection criteria include:

· Tensile strength

· Wear resistance

· Fatigue performance

· Lubrication requirements

· Service life

Improper chain selection is one of the most common causes of premature conveyor failure.

Flights (Scrapers)

Flights move grain through the conveyor.

Important design factors:

· Shape

· Material

· Spacing

· Wear characteristics

· Replaceability

Proper flight geometry improves conveying efficiency while minimizing grain damage.

Bearings and Seals

Although often overlooked, bearings and seals significantly influence long-term reliability.

Well-designed sealing systems help prevent dust ingress and reduce maintenance requirements.

Chapter 5 — Engineering Selection Method

Selecting a chain conveyor involves more than choosing a capacity.

Engineers should evaluate:

Material Characteristics

· Bulk density

· Particle size

· Moisture content

· Abrasiveness

· Flowability

Operational Requirements

· Required throughput

· Operating hours

· Number of transfer points

· Inclination (if any)

· Future expansion plans

Site Conditions

· Indoor or outdoor installation

· Ambient temperature

· Dust environment

· Corrosion exposure

· Maintenance accessibility

A systematic evaluation reduces the likelihood of undersized or oversized equipment.

Chapter 6 — Comparing Chain Conveyors with Other Systems

Rather than asking which conveyor is “better,” project teams should determine which technology best matches the application’s operating requirements.

Chapter 7 — System Integration

Chain conveyors rarely operate in isolation.

Typical integration includes:

· Receiving pits

· Bucket elevators

· Grain cleaners

· Grain dryers

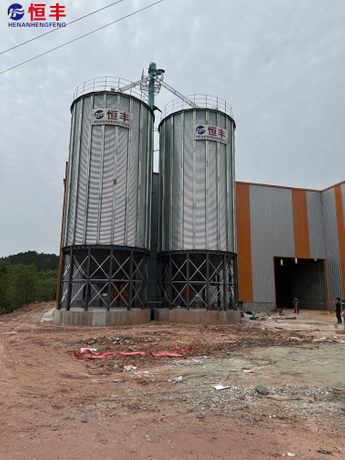

· Flat-bottom steel silos

· Hopper bottom steel silos

· Belt conveyors

· Loading spouts

Designing these interfaces correctly reduces transfer losses and improves overall plant efficiency.

Chapter 8 — Reliability Engineering

Reliable operation depends on preventive design as much as preventive maintenance.

Design features that improve reliability include:

· Accessible inspection doors.

· Replaceable wear liners.

· Automatic chain tensioning (where applicable).

· Overload protection.

· Condition monitoring sensors.

· Modular component replacement.

Considering maintainability during the design stage can significantly reduce lifecycle costs.

Chapter 9 — Lifecycle Cost Analysis

Instead of evaluating only the purchase price, compare:

· Initial equipment investment.

· Installation cost.

· Energy consumption.

· Spare parts usage.

· Scheduled maintenance.

· Unplanned downtime.

· Expected service life.

In many facilities, downtime costs exceed the initial equipment price over the operating life of the system.

Chapter 10 — Engineering Review Checklist

Before approving a chain conveyor specification, confirm:

· Required throughput has been verified.

· Material characteristics have been reviewed.

· Conveyor length matches the layout.

· Drive power is appropriate.

· Inspection access is adequate.

· Spare parts strategy has been defined.

· Expansion requirements have been considered.

· Safety systems meet project requirements.

A structured review process helps reduce engineering risks before procurement begins.

Common Design Errors

Projects frequently encounter avoidable problems, such as:

· Selecting equipment based only on peak capacity.

· Ignoring future expansion.

· Underestimating maintenance access requirements.

· Using unsuitable chain materials for abrasive products.

· Poor alignment with upstream or downstream equipment.

· Inadequate dust management.

Recognizing these risks early improves both project delivery and long-term operation.

Frequently Asked Questions

Is a chain conveyor suitable for all grain types?

Chain conveyors are commonly used for many free-flowing grains, but the final design should consider Bulk density, moisture content, and flow characteristics.

When should a chain conveyor be preferred over a belt conveyor?

Chain conveyors are often selected where enclosed conveying, dust control, compact layouts, or multiple discharge points are important design priorities.

Can one conveyor serve multiple silos?

Yes. With appropriate routing and discharge arrangements, a single chain conveyor can distribute Material to multiple storage units.

How important is preventive maintenance?

Routine inspection of chains, flights, bearings, and wear components helps maintain reliable operation and reduces unexpected downtime.

Related Engineering Resources

To deepen understanding of integrated grain handling systems, readers may also explore:

· Bucket Elevator Engineering Handbook

· Flat Bottom Steel Silo Engineering Guide

· Hopper Bottom Steel Silo Buyer’s Guide

· Bulk Grain Handling Systems

· Grain Drying Engineering Fundamentals

· Steel Silo Installation Handbook

Conclusion

A chain conveyor is not simply a horizontal transport device—it is a key engineering component that influences Material flow, dust control, plant layout, and operational reliability. Successful selection requires a balanced evaluation of material characteristics, process requirements, maintenance strategy, and lifecycle cost rather than focusing solely on equipment specifications.

Integrated correctly within a grain handling system, chain conveyors help improve operational continuity, reduce grain losses, and support efficient Bulk material movement across commercial, industrial, and government grain storage facilities.
