Rear Tipping Hydraulic Unloading Platform for Bulk Cargo Versatile Truck Tippling Unloader

Name: Rear Tipping Hydraulic Unloading Platform for Bulk Cargo Versatile Truck Tippling Unloader
Brand: HengFeng
Rating: 5.0 (40 reviews)

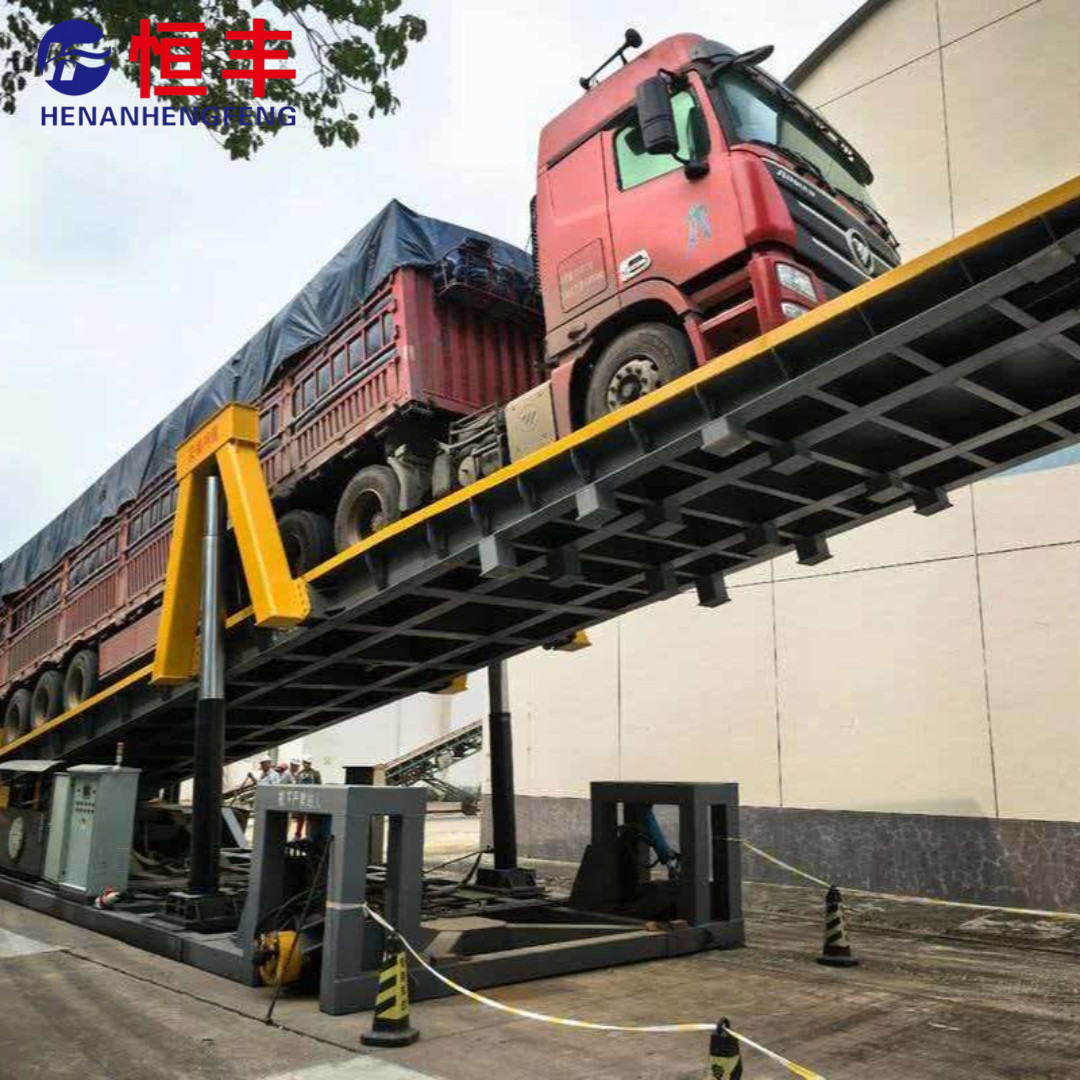

The hydraulic tipper is a hydraulic-driven automatic unloading equipment for bulk materials, which achieves rapid unloading of trucks (side dumping/rear dumping) by tilting and flipping the platform. It is widely used in bulk material loading and unloading scenarios such as grain depots, feed mills, ports, power plants, mines, and chemical industries, involving bulk materials like grain, coal, ore, and cement.

Quantity:
Availability:





Inquire

Model:
Rear Tipping Hydraulic Unloading Platform
Brand:
HengFeng

Truck Tippling Unloader Hydraulic Unloader Truck Tippling Unloader Machine Truck Tippling Unloader Bulk Buy Hydraulic Track Lifter Machine

Product Description

Bearing platform: made of high-strength anti-slip steel plate, capable of bearing 10–150t, with customizable dimensions, suitable for light trucks to semi-trailers.
Hydraulic system: dual-cylinder synchronous lifting, with a tilting angle adjustable from 0° to 60°, ensuring stable operation and thorough unloading.
Electronic control system: PLC intelligent control, supporting one-button automatic/manual/remote operation, capable of completing the unloading of the entire vehicle within 90 seconds.
Safety protection: hydraulic self-locking, anti-rollover, emergency fallback, wheel chock anti-slip, infrared interlock, all in compliance with safety standards.

Product Parameters

Name	Deep foundation hydraulic double-cylinder rear-dump platform
Model	HF-100T×18×3m×45°
Parameter
Lifting capacity	100T(Excluding the self-weight of the turnover platform)
Vehicles with a length	≦18m
Wheel stopper	hydraulic vertical lifting
Maximum lifting angle	45° (can stop at any position)
Lifting time	≦5min
Fall time	≦3min
Hydraulic system pressure	≦16MPa
Oil pump motor power	30 kW
Power supply	380/50 V/Hz
Insulation level	not lower than Class F
Protection level	IP54
Vehicle positioning method	pour-in type
Installation method of hydraulic cylinder	bottom support
Power supply location	equipment power box
Control mode	manual/remote control
