Telescopic Shiploader with Truck Unloader for Clinker Conveying

Name: Telescopic Shiploader with Truck Unloader for Clinker Conveying
Brand: HengFeng
Rating: 5.0 (86 reviews)

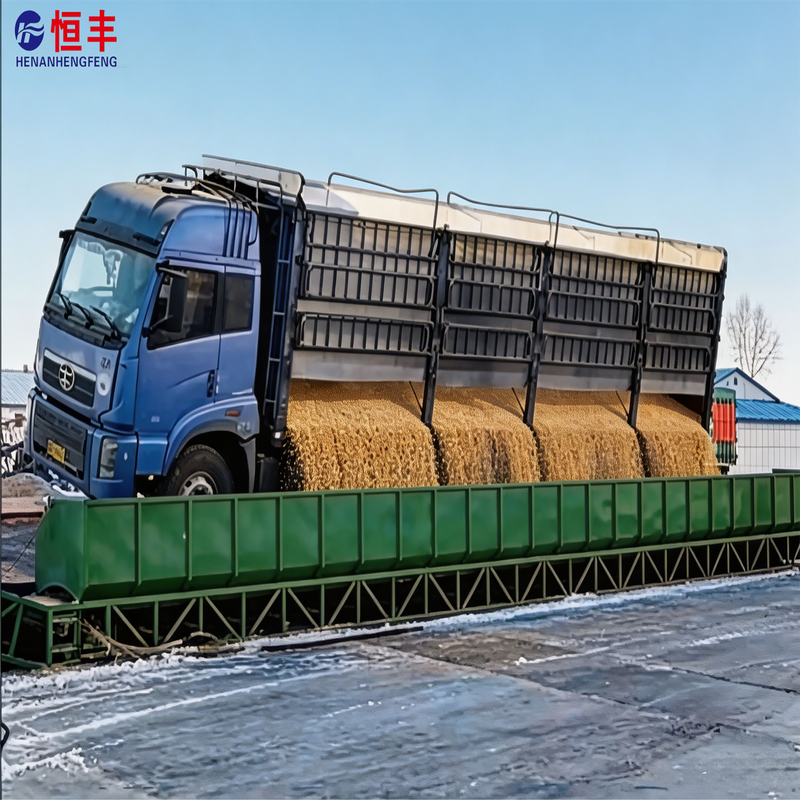

The hydraulic tipper is a hydraulic-driven automatic unloading equipment for bulk materials, which achieves rapid unloading of trucks (side dumping/rear dumping) by tilting and flipping the platform. It is widely used in bulk material loading and unloading scenarios such as grain depots, feed mills, ports, power plants, mines, and chemical industries, involving bulk materials like grain, coal, ore, and cement.

Quantity:
Availability:





Inquire

Model:
100T Hydraulic Tipping Machine
Brand:
HengFeng

Loading Unloading System Oil Loading System Automatic Loading Loading Control System Plastic Loading System Engineering machine Dump Truck for Sale Dump Truck Trailer Large Dump Truck Dumper Trucks

Product Description

Bearing platform: made of high-strength anti-slip steel plate, capable of bearing 10–150t, with customizable dimensions, suitable for light trucks to semi-trailers.
Hydraulic system: dual-cylinder synchronous lifting, with a tilting angle adjustable from 0° to 60°, ensuring stable operation and thorough unloading.
Electronic control system: PLC intelligent control, supporting one-button automatic/manual/remote operation, capable of completing the unloading of the entire vehicle within 90 seconds.
Safety protection: hydraulic self-locking, anti-rollover, emergency fallback, wheel chock anti-slip, infrared interlock, all in compliance with safety standards.

Product Parameters

Name	Fixed hydraulic double-cylinder rear tipping platform
Model	HF-100T×18×3m×45°
Parameter
Lifting capacity	20T(Excluding the self-weight of the turnover platform)
Vehicles with a length	≦4.2m
Wheel stopper	Fixing Type
Maximum lifting angle	45° (can stop at any position)
Lifting time	≦5min
Fall time	≦3min
Hydraulic system pressure	≦16MPa
Oil pump motor power	7.5 kW
Power supply	380/50 V/Hz
Insulation level	not lower than Class F
Protection level	IP54
Vehicle positioning method	pour-in type
Installation method of hydraulic cylinder	Vertical installation on both sides
Power supply location	equipment power box
Control mode	manual/remote control
