Durable Hydraulic Trucking Unloader for Fertilizer And Grain Fast Truck Unloading

Name: Durable Hydraulic Trucking Unloader for Fertilizer And Grain Fast Truck Unloading
Brand: HengFeng
Rating: 5.0 (51 reviews)

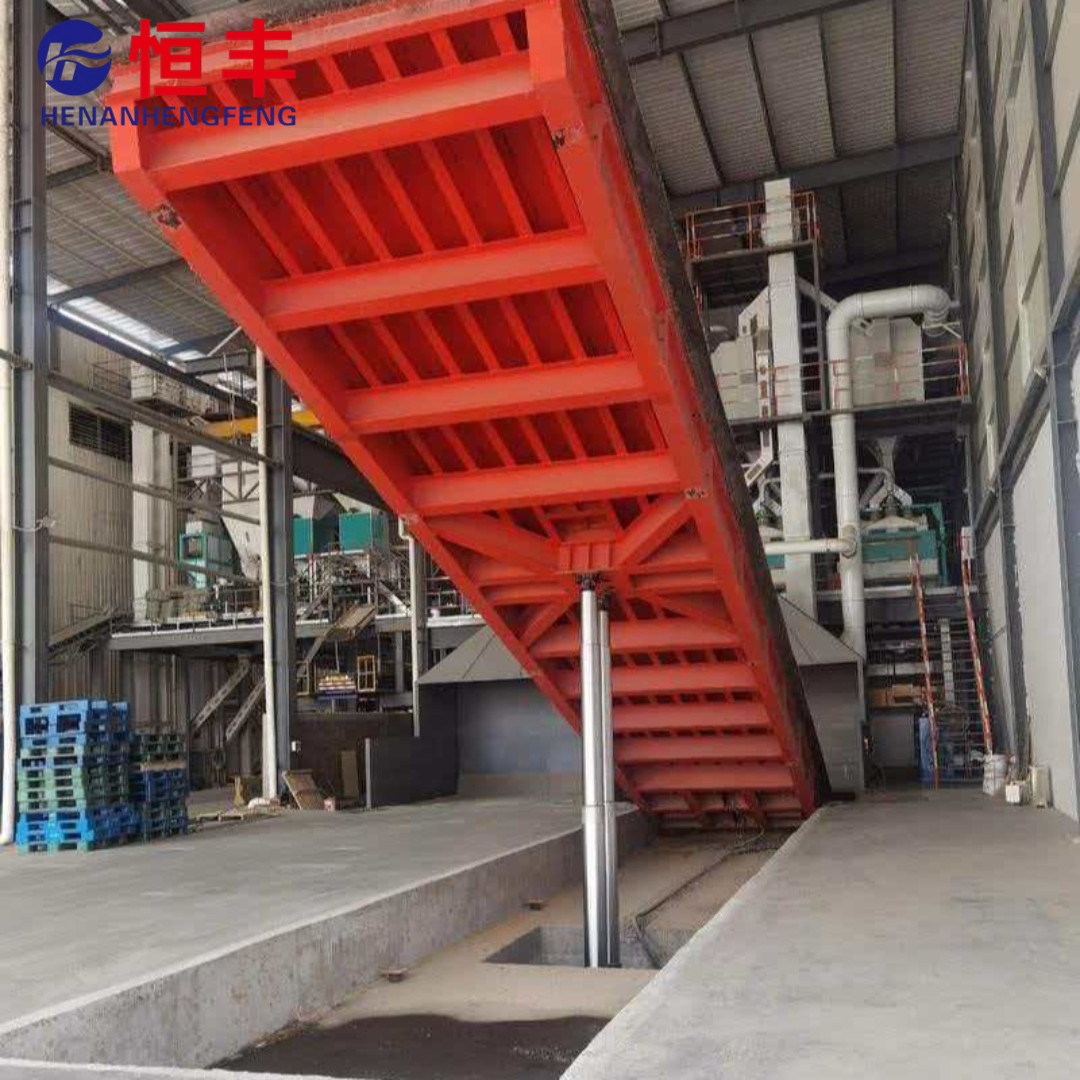

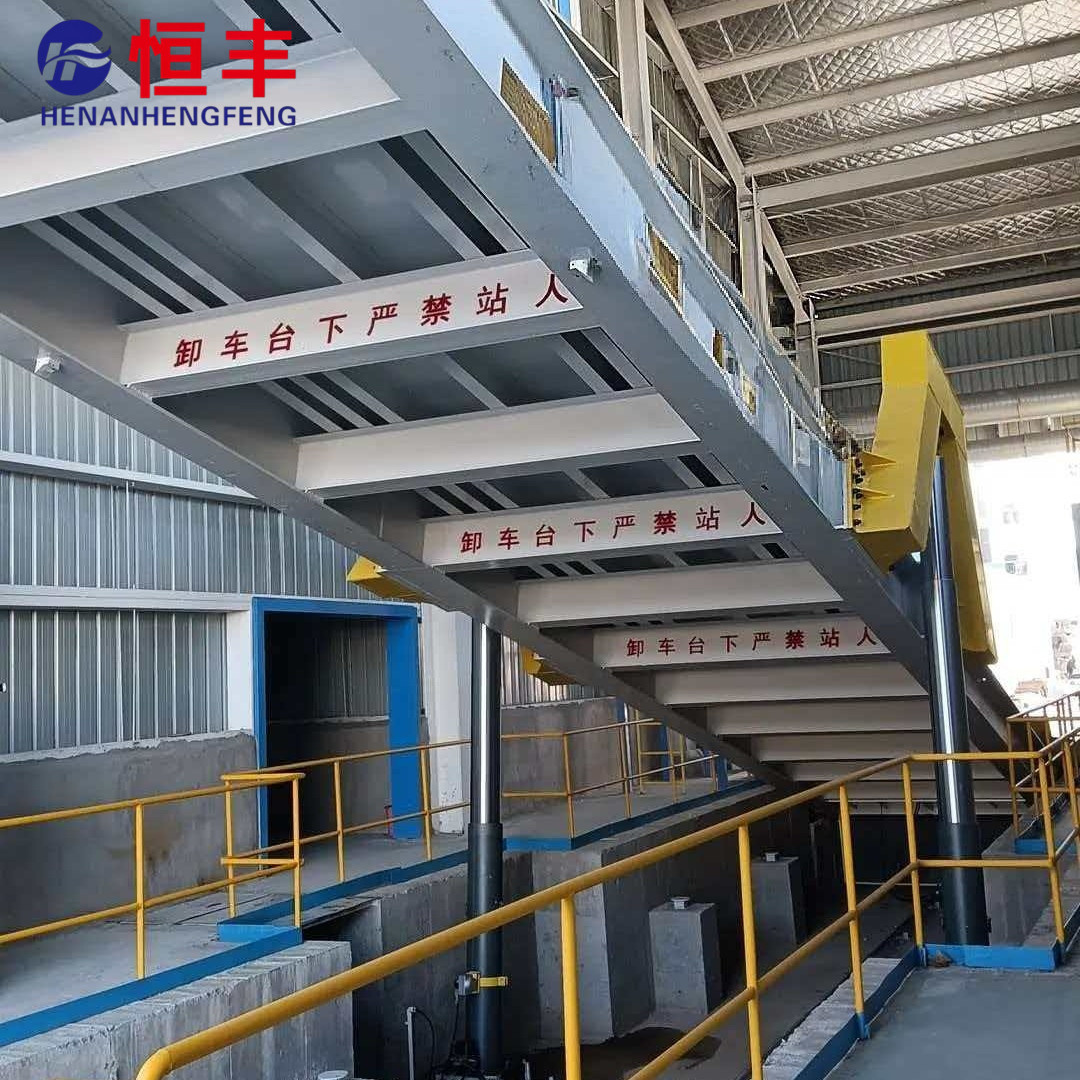

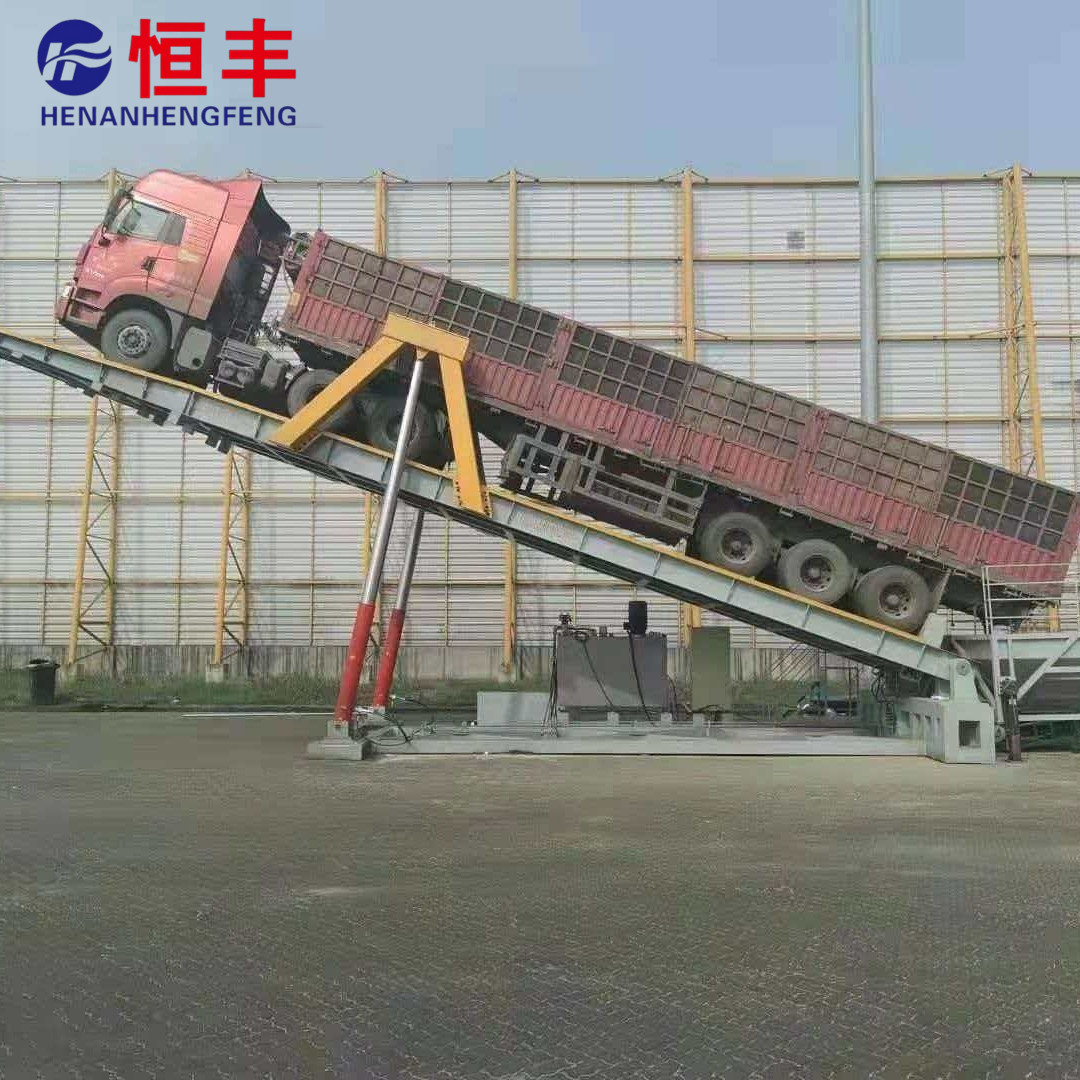

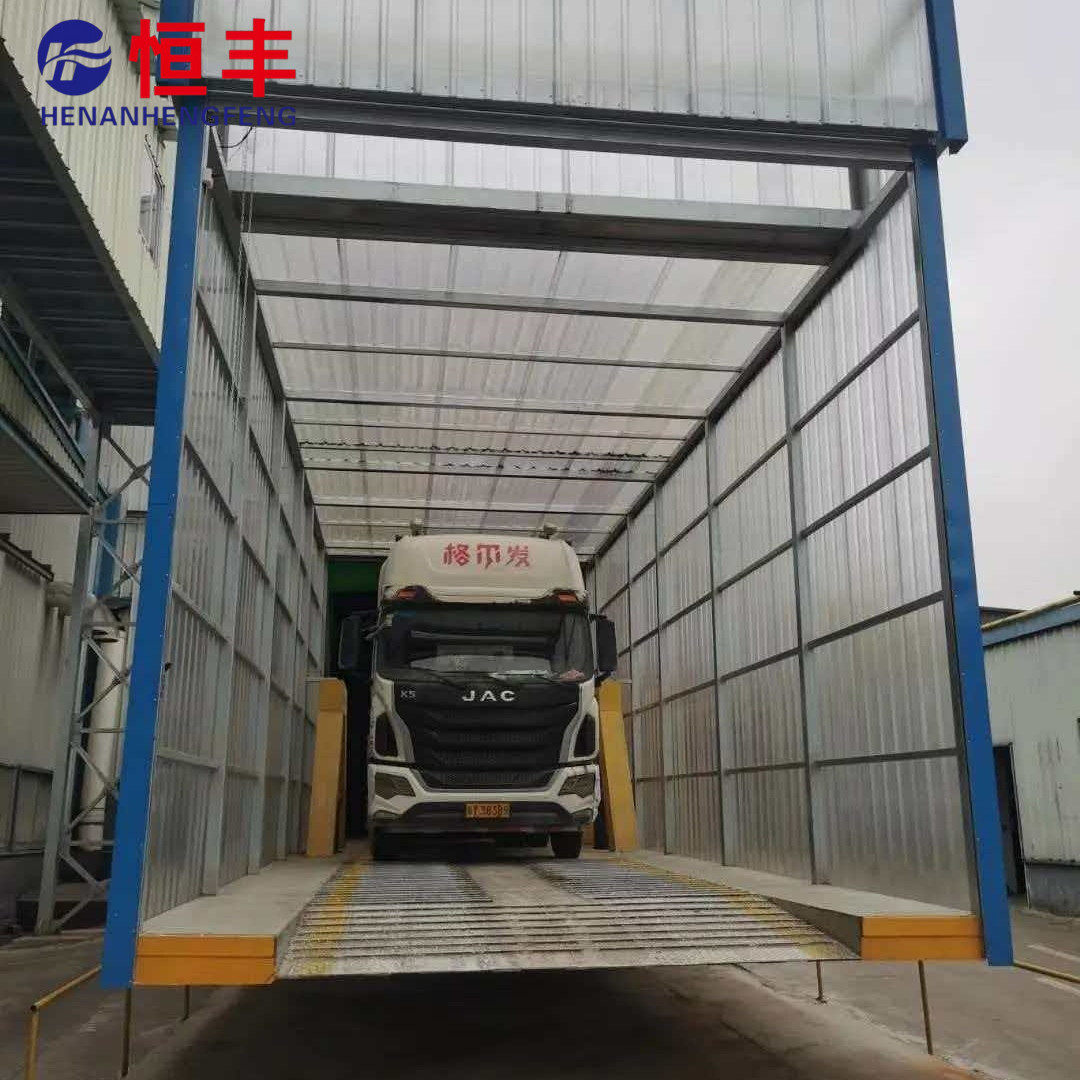

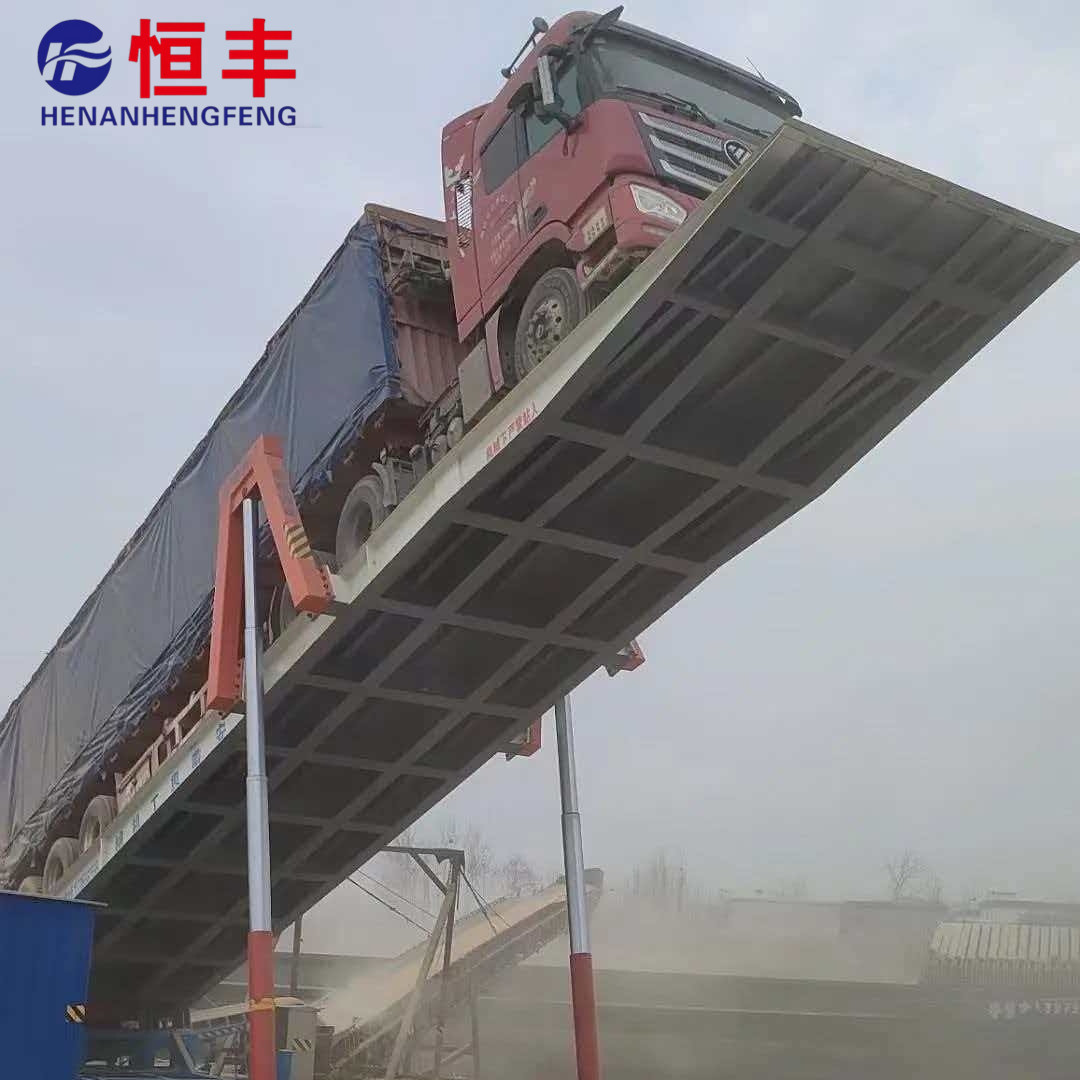

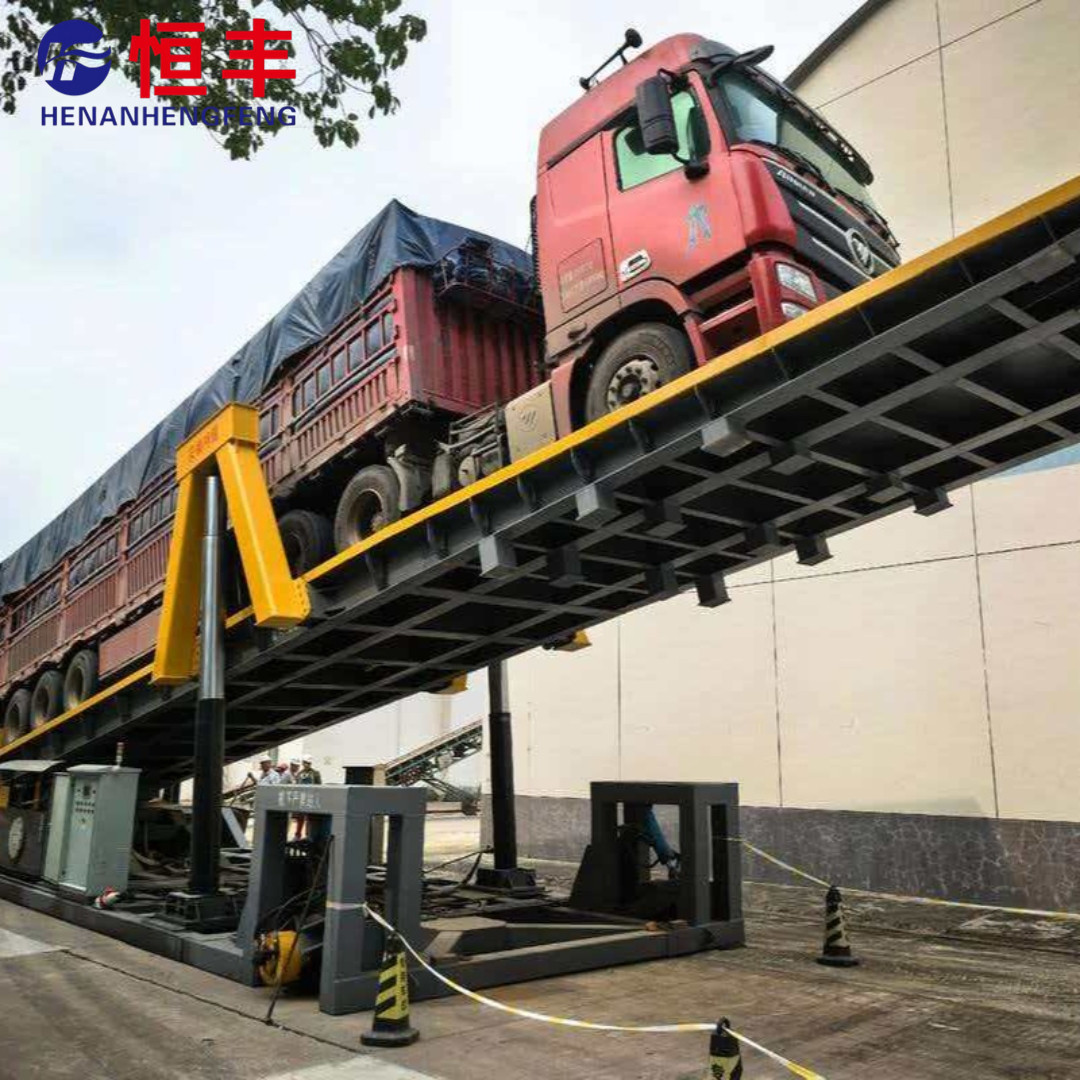

The hydraulic tipper is a hydraulic-driven automatic unloading equipment for bulk materials, which achieves rapid unloading of trucks (side dumping/rear dumping) by tilting and flipping the platform. It is widely used in bulk material loading and unloading scenarios such as grain depots, feed mills, ports, power plants, mines, and chemical industries, involving bulk materials like grain, coal, ore, and cement.

Quantity:
Availability:





Inquire

Model:
Hydraulic Tipping Machine
Brand:
HengFeng

Two-Post Car Lift Asymmetric Car Lift Four-Post Car Lift Automotive Lift Equipment Durable Construction Unloader Fertilizer Grain Unloader Dump Trailer Hydraulic Dump Trailer Heavy Duty Dump Trailers Trucks Dump Trailers

Product Description

Bearing platform: made of high-strength anti-slip steel plate, capable of bearing 10–150t, with customizable dimensions, suitable for light trucks to semi-trailers.
Hydraulic system: dual-cylinder synchronous lifting, with a tilting angle adjustable from 0° to 60°, ensuring stable operation and thorough unloading.
Electronic control system: PLC intelligent control, supporting one-button automatic/manual/remote operation, capable of completing the unloading of the entire vehicle within 90 seconds.
Safety protection: hydraulic self-locking, anti-rollover, emergency fallback, wheel chock anti-slip, infrared interlock, all in compliance with safety standards.

Product Parameters

Name	Deep foundation hydraulic double-cylinder rear-dump platform
Model	HF-100T×18×3m×45°
Parameter
Lifting capacity	100T(Excluding the self-weight of the turnover platform)
Vehicles with a length	≦18m
Wheel stopper	hydraulic vertical lifting
Maximum lifting angle	45° (can stop at any position)
Lifting time	≦5min
Fall time	≦3min
Hydraulic system pressure	≦16MPa
Oil pump motor power	22 kW
Power supply	380/50 V/Hz
Insulation level	not lower than Class F
Protection level	IP54
Vehicle positioning method	pour-in type
Installation method of hydraulic cylinder	bottom support
Power supply location	equipment power box
Control mode	manual/remote control

Product Advantages

Efficient and labor-saving: The unloading efficiency is more than 10 times that of manual labor, significantly reducing vehicle turnover time.
No residue during unloading: Large-angle flipping + anti-slip design, allowing material to flow out naturally due to gravity.
Stable and durable: heavy-duty steel structure + high-quality hydraulic components, suitable for harsh working conditions such as high frequency, dust, and humidity.
Customization and adaptation: Dimensions, load capacity, and flipping methods (side flipping / rear flipping) can be customized according to the venue / vehicle model.
